2.1M F18

Description

JET RULER 2.1M F18F



New Release!

Full composite construction

Pre-installed servo extension

2x 850 cc fuel tank,

1x2200cc main tank,

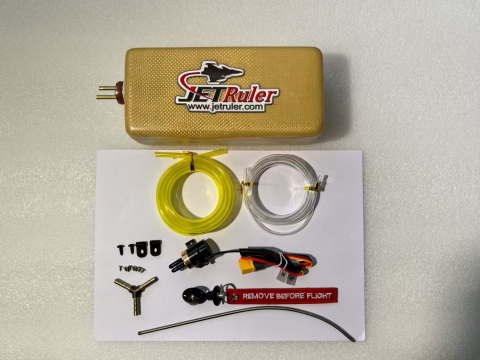

Smoke system:

(Optional configuration) The smoke incorporates a 1-liter Kevlar fuel tank.

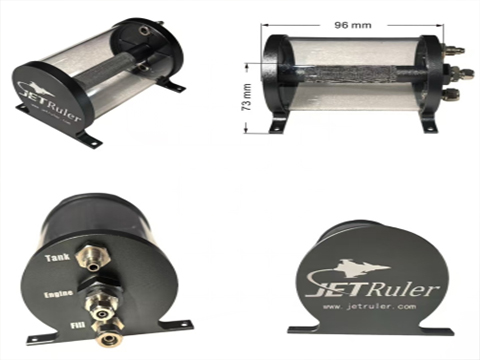

UAT 220CC

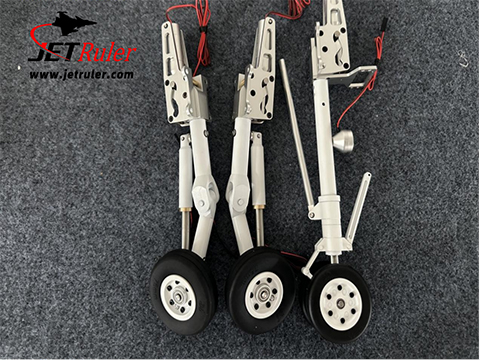

JP electric retract gear with brake,

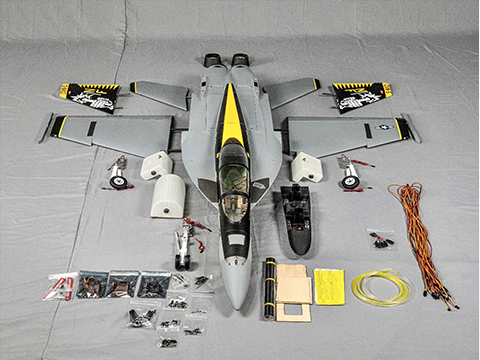

and hardware package included

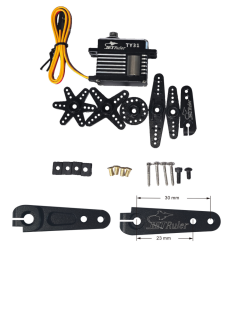

PNP includes Jet ruler digital servos

Promotion Sale includes

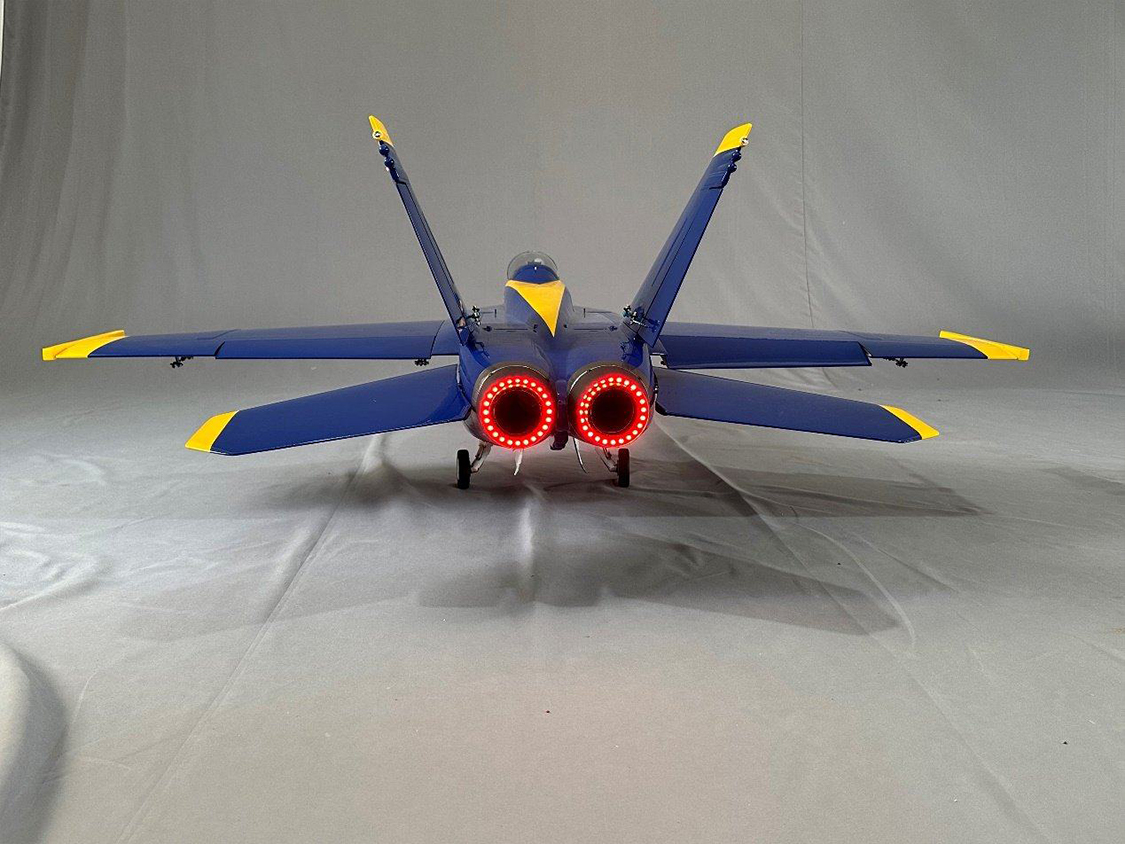

1. Navigation/Afterburner Light Installed

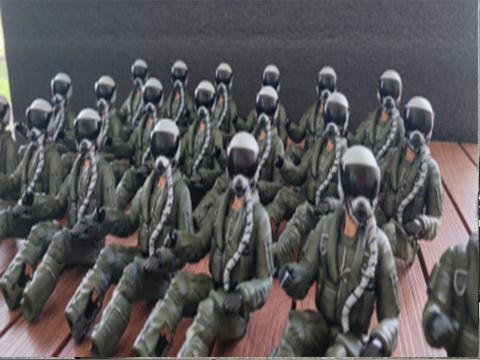

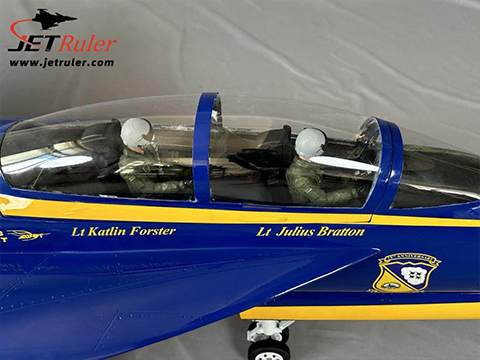

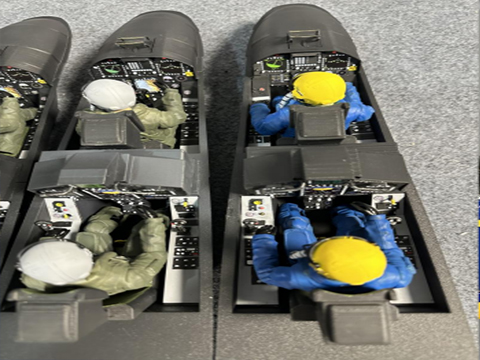

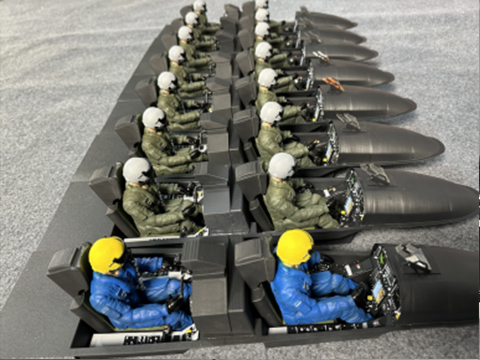

2.Cockpit included:







Servos: x12

X4 middle size servo, 12-20kg

X4 middle size servo, 20-30kg

X4 standard size servo, 30-40kg

Specification:

Wingspan 1506 mm (59.3 in)

Length 2100mm (82.6 in)

Ready to Fly Weight 14.5 KG (32 lbs)

PNP Servo Jetruler , HV, HQ

Retract System Electric retracts with E-brake wheels ( controller included)

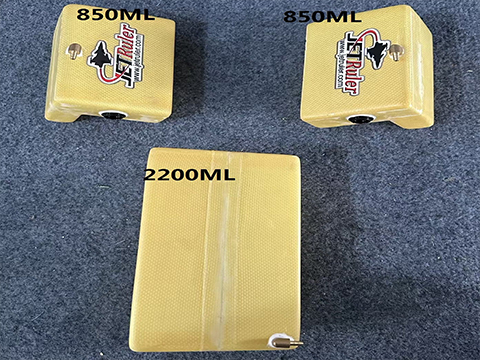

Saddle Fuel Tanks 850 cc each x2 (1700cc)

Main Fuel Tank 2200 cc

Recommended Turbine Engine 12-16KG(120-160N)

Requires:

turbine engine (not included)

Battery balance charger and power supply (not included)

Engine Jet A/diesel/kerosene fuel (not included)

Throw info:

Weight RTF minus Fuel 32lbs (with UAT full)

Control Settings:

ELE: ±20mm

Rudder: ±35mm

Aileron: ±25mm

FLP take off: 15-20 degrees

FLP landing: 35-45 degrees

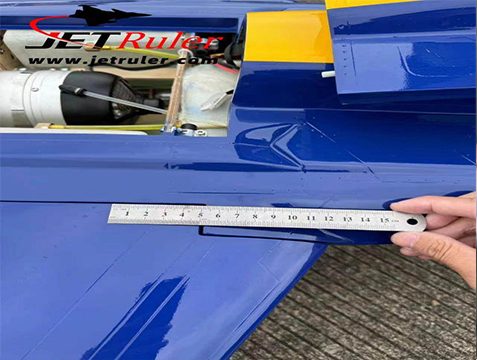

CG: 125mm ±5mm from leading edge at root

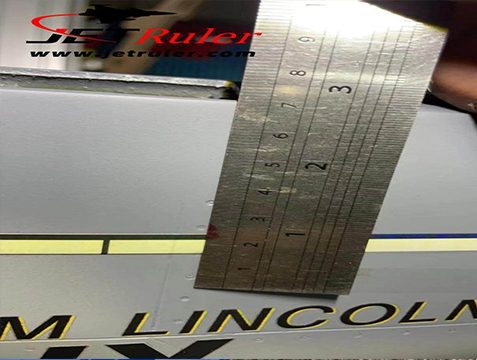

Horizontal tail position：69mm



For Crow users. Set up ailerons on both side at 5 degrees up at maximum flaps.

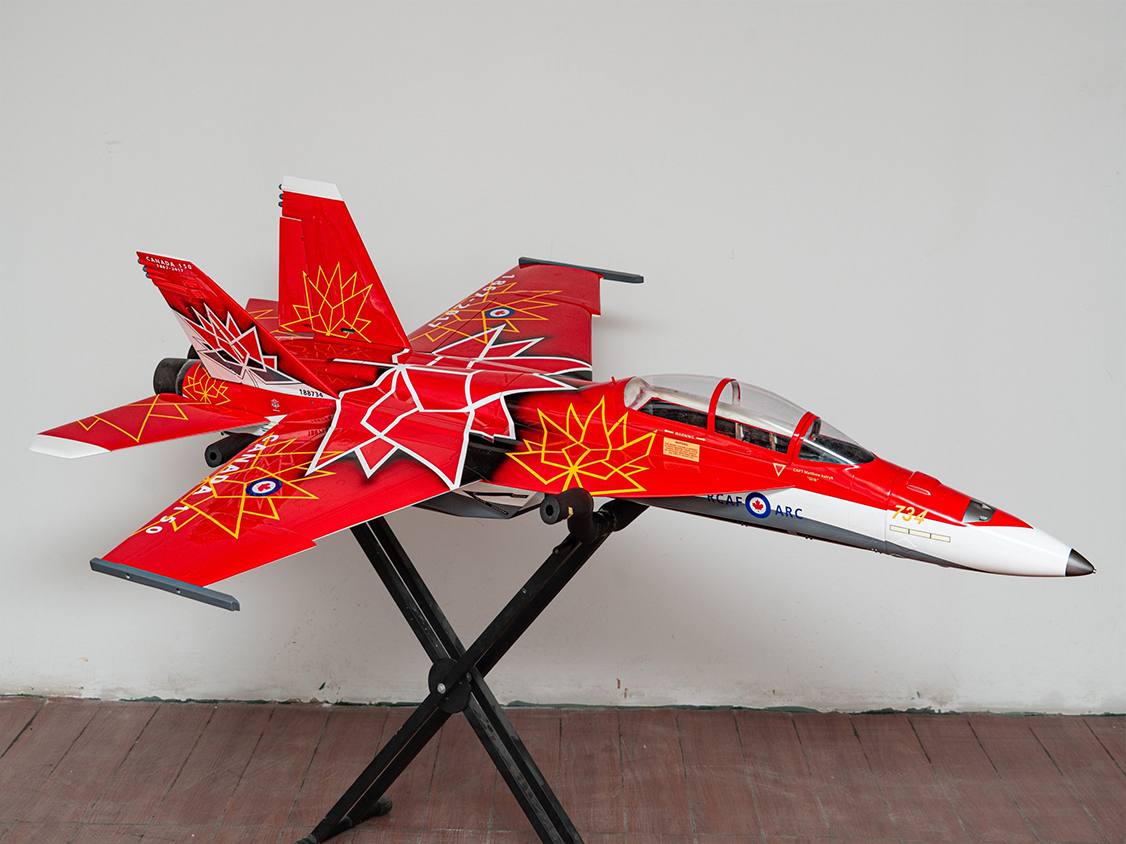

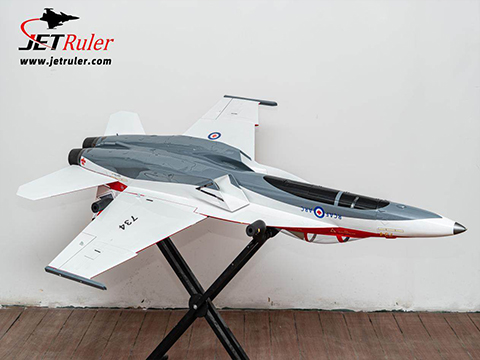

01 CANADA

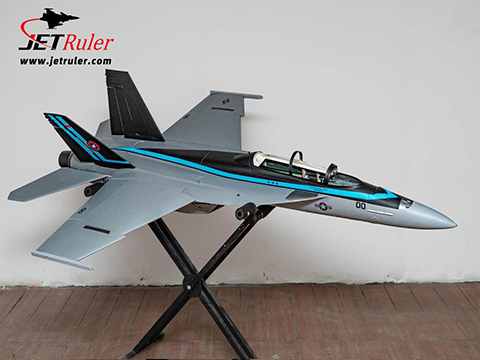

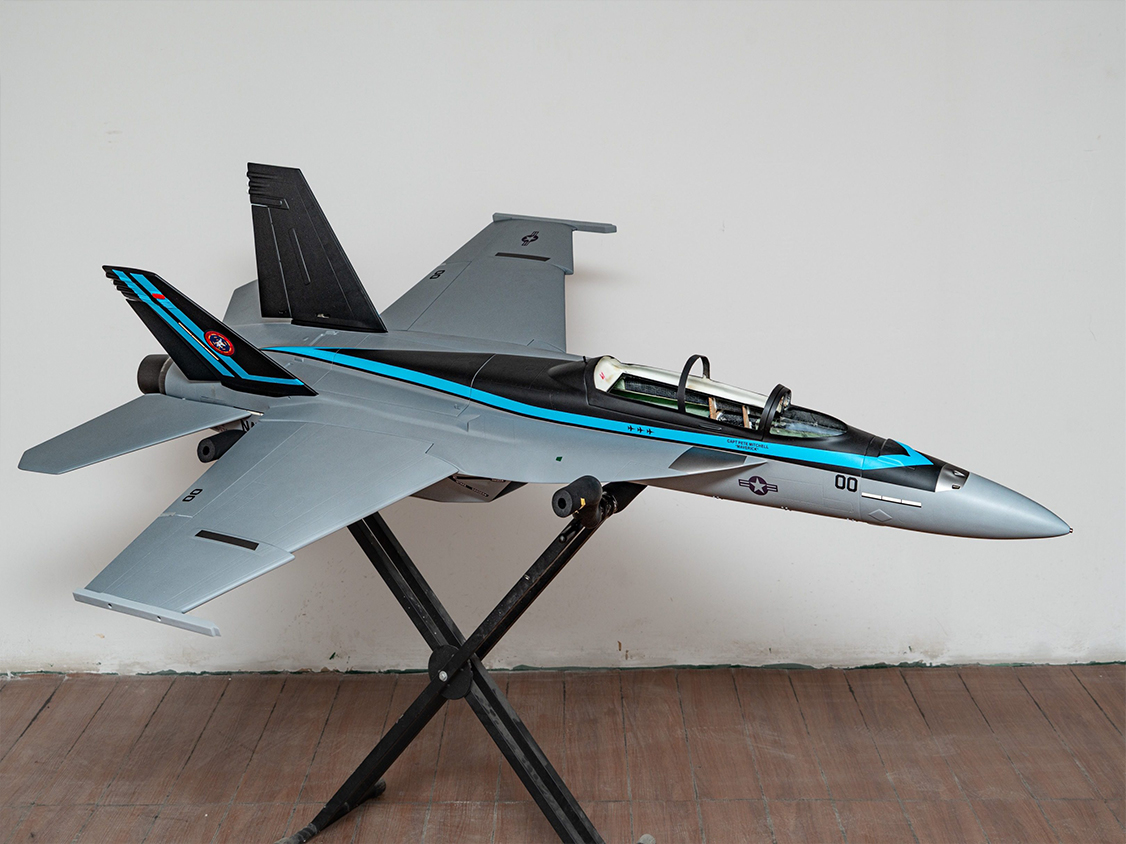

02 TOP GUN

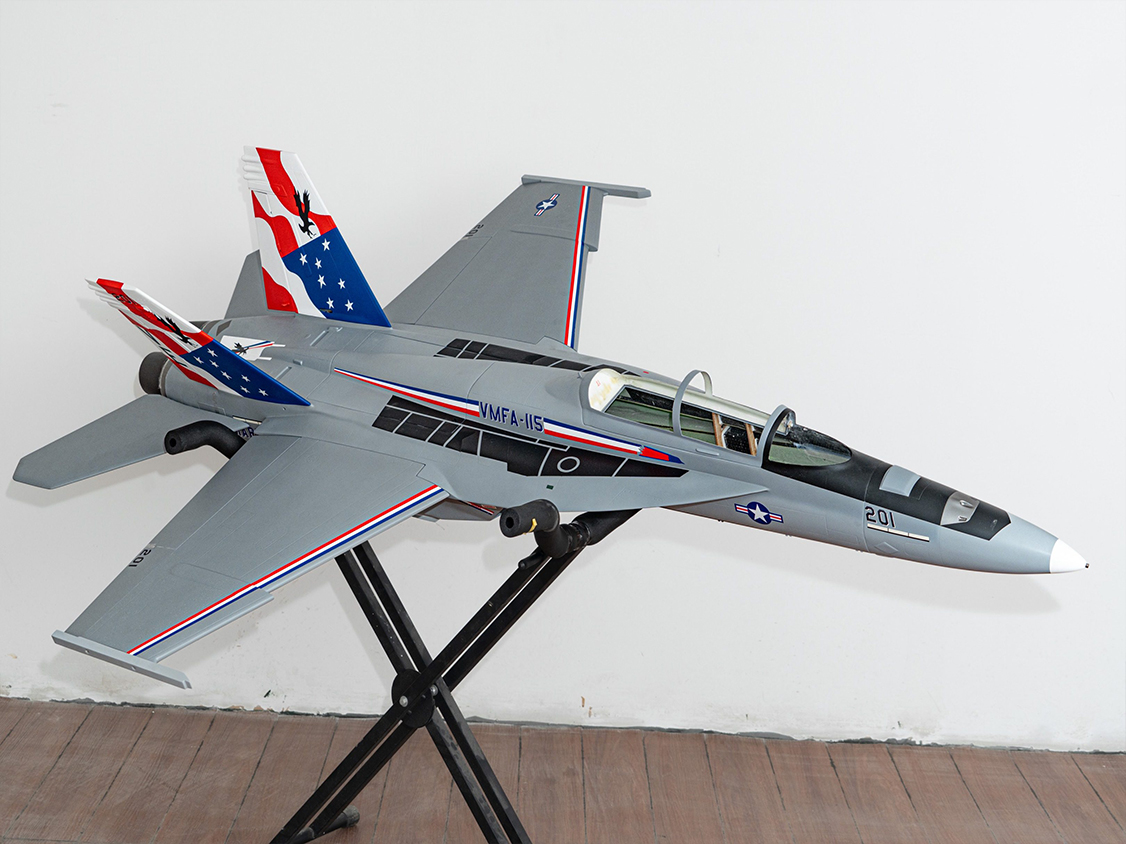

03 VMFA-115

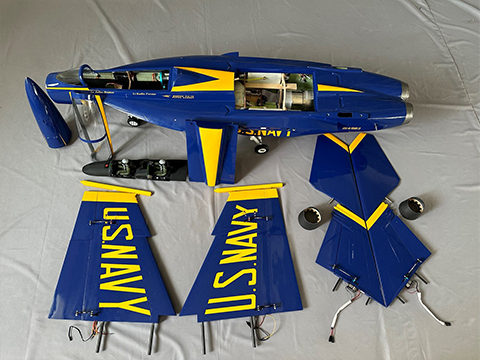

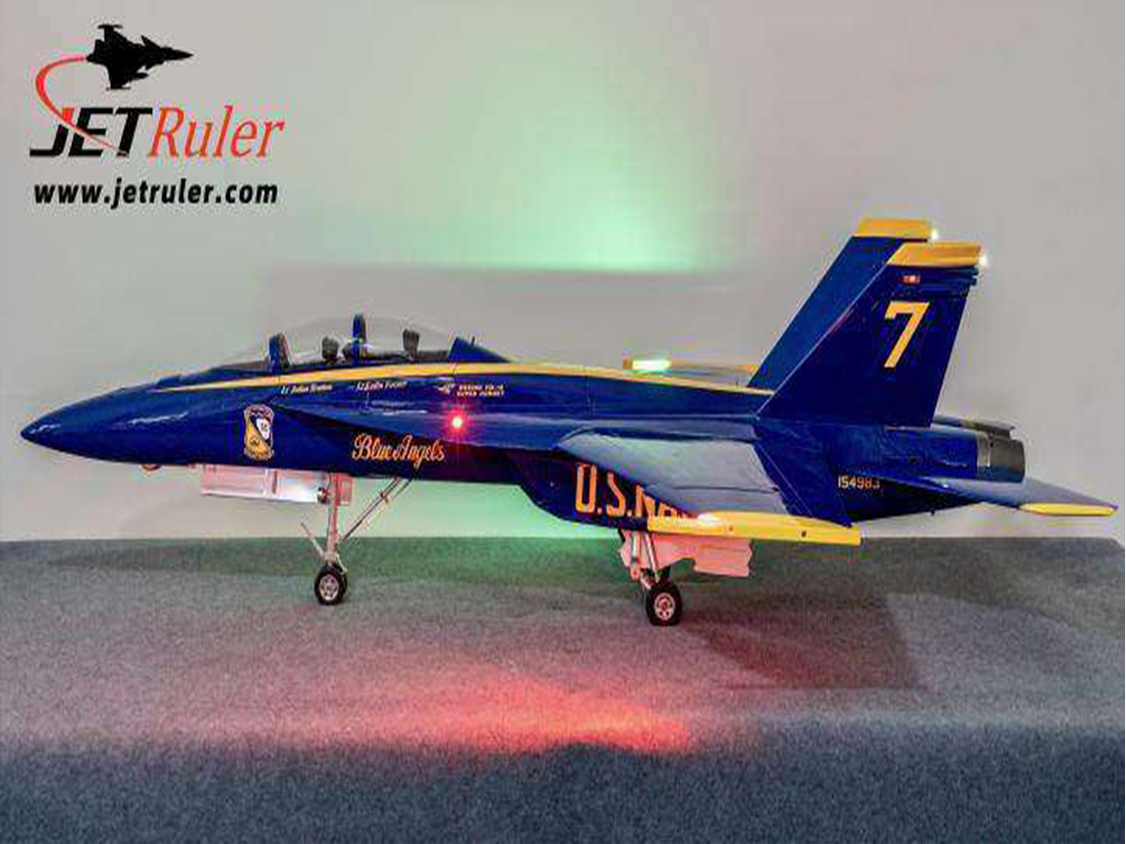

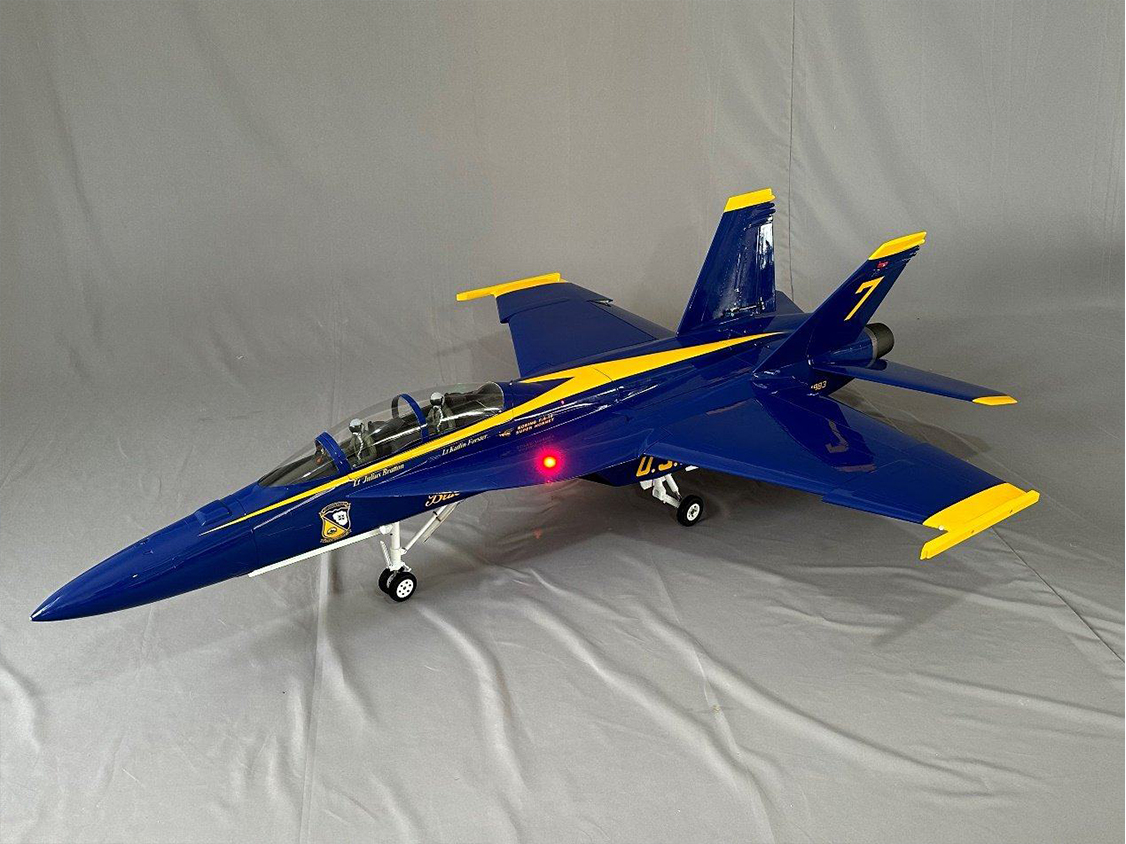

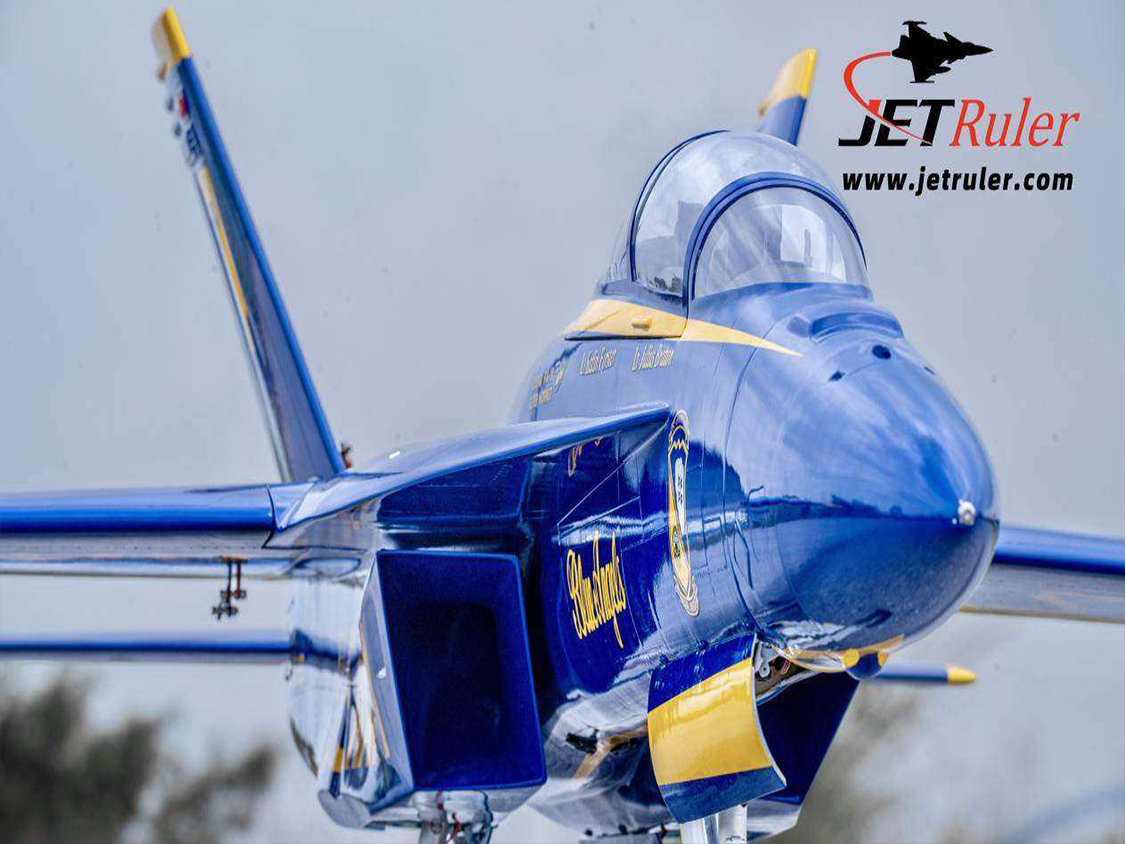

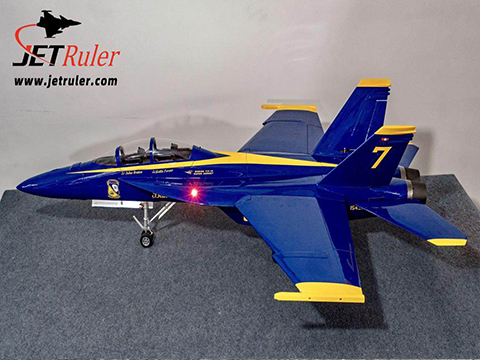

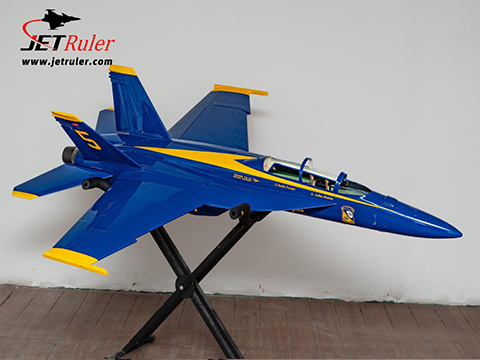

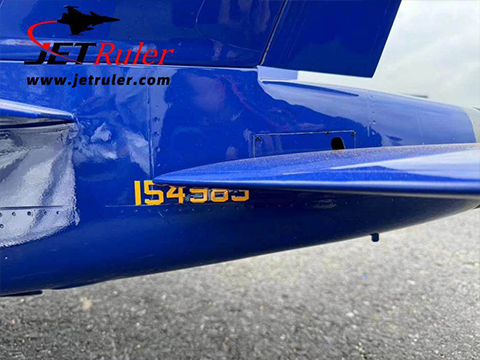

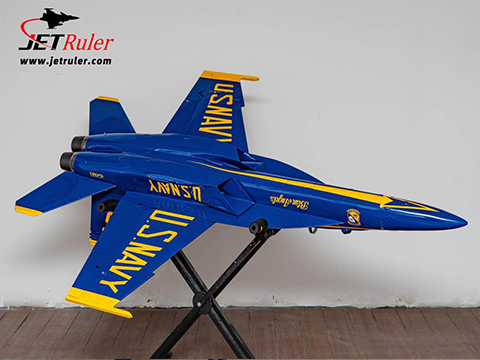

04 BLUE ANGELS

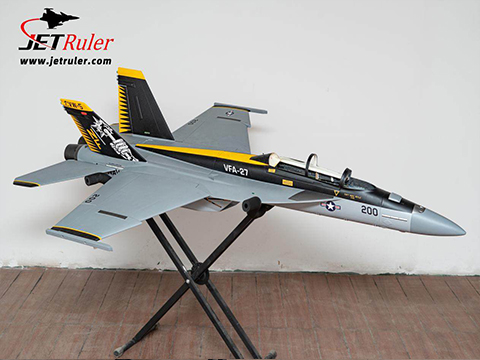

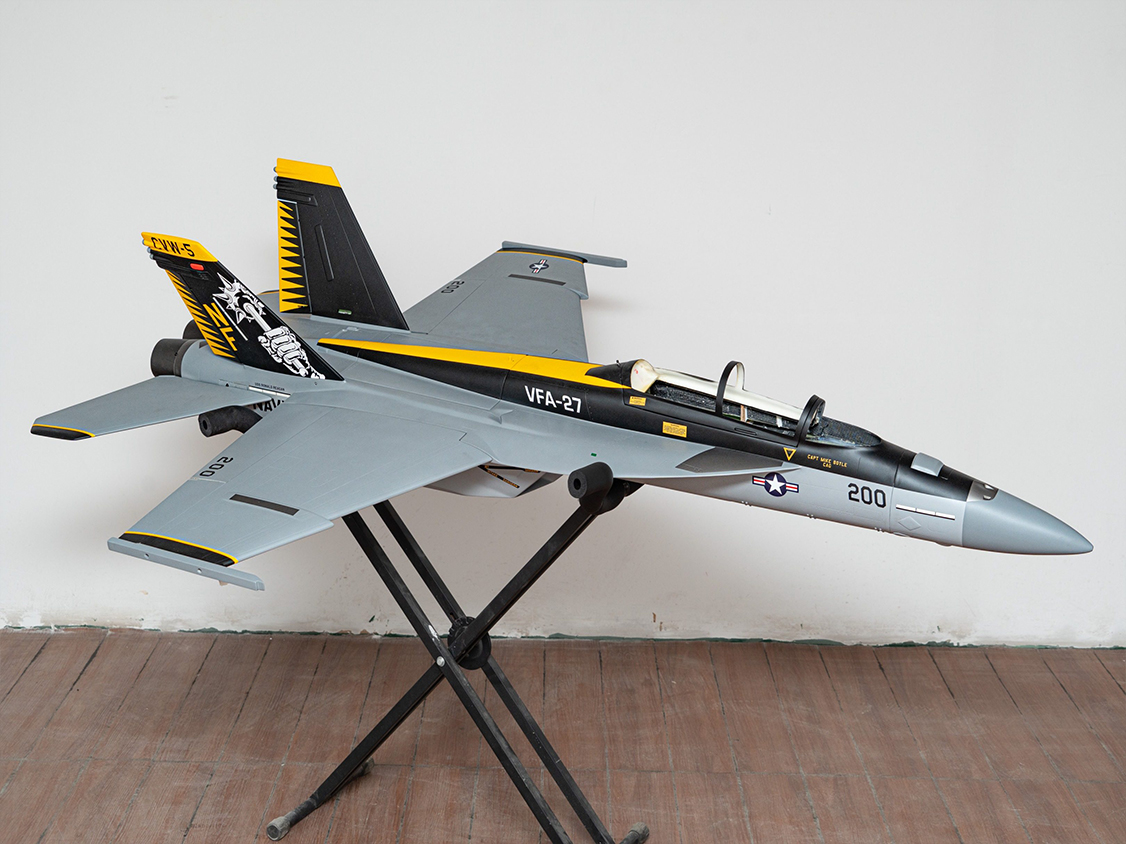

05 VFA-27
