2.2M L39

Description

JET RULER 2.2M L39

We wanted this one to go above and beyond as a beautiful scale model. We found ways to make it reliable and tough enough to actually be flown on a regular basis, and not a problem to transport or put together, all in a package that fly’s brilliantly well.

SPECIFICATION:

Model: 2.2M L39

Wingspan:1718 mm

Length:2180 mm

Ready to Fly Weight: 13kg（without fuel）

BASIC SETUP:

Control throws:

Aileron: 20 degrees up / 20 degrees down – 65% Expo

Rudder: 25 degrees left / 25 degrees right – 50% Expo

Elevator: 20 degrees / 20 degrees – 50% Expo

The CG is 135mm from the front leading edge on the root of the wing (Factory Settings)

FEATURES:

Full composite construction, lightweight and strong

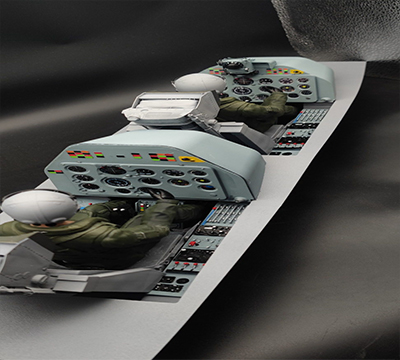

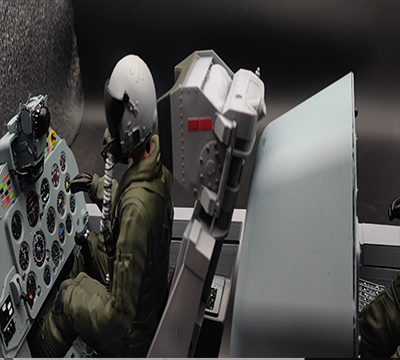

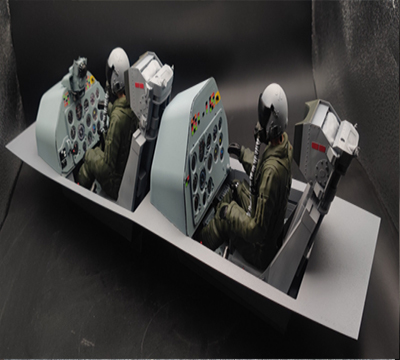

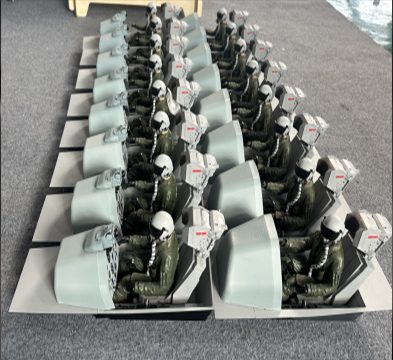

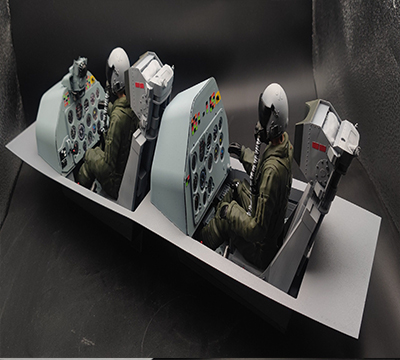

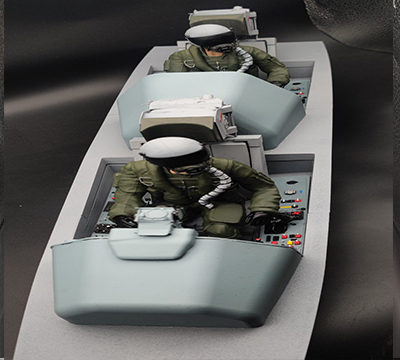

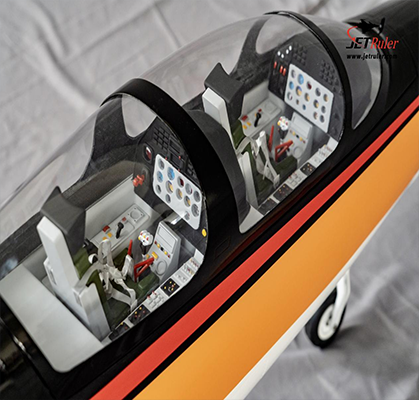

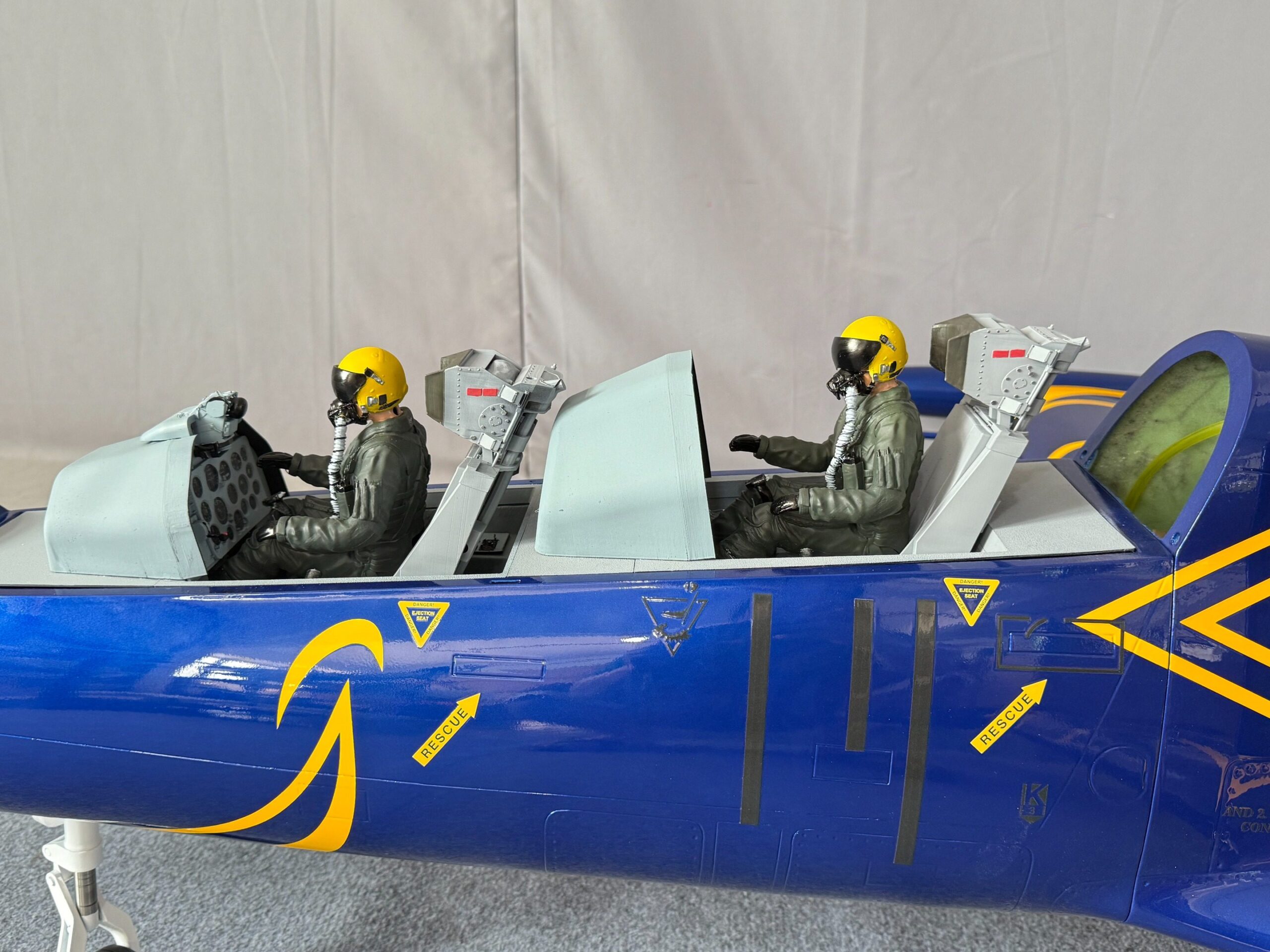

Simulate fighter cockpit

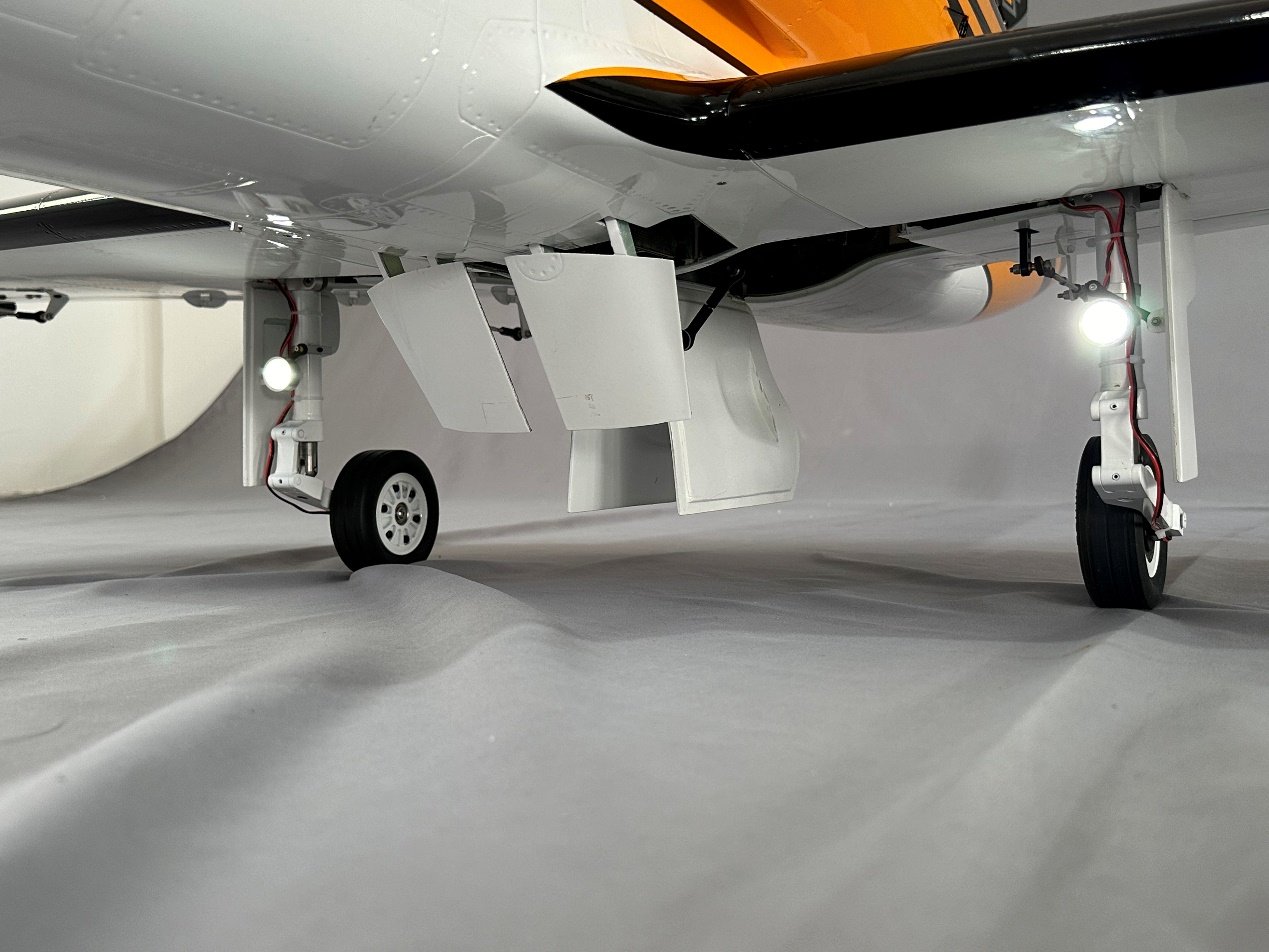

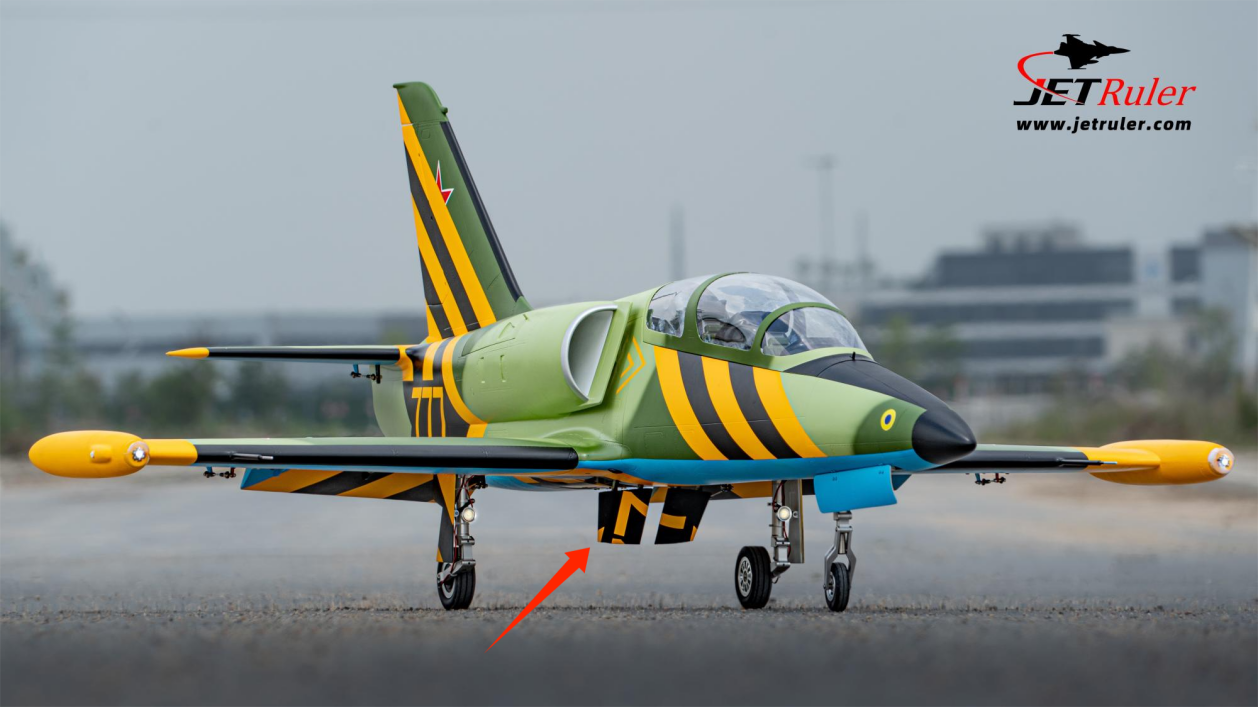

Air-brake flap

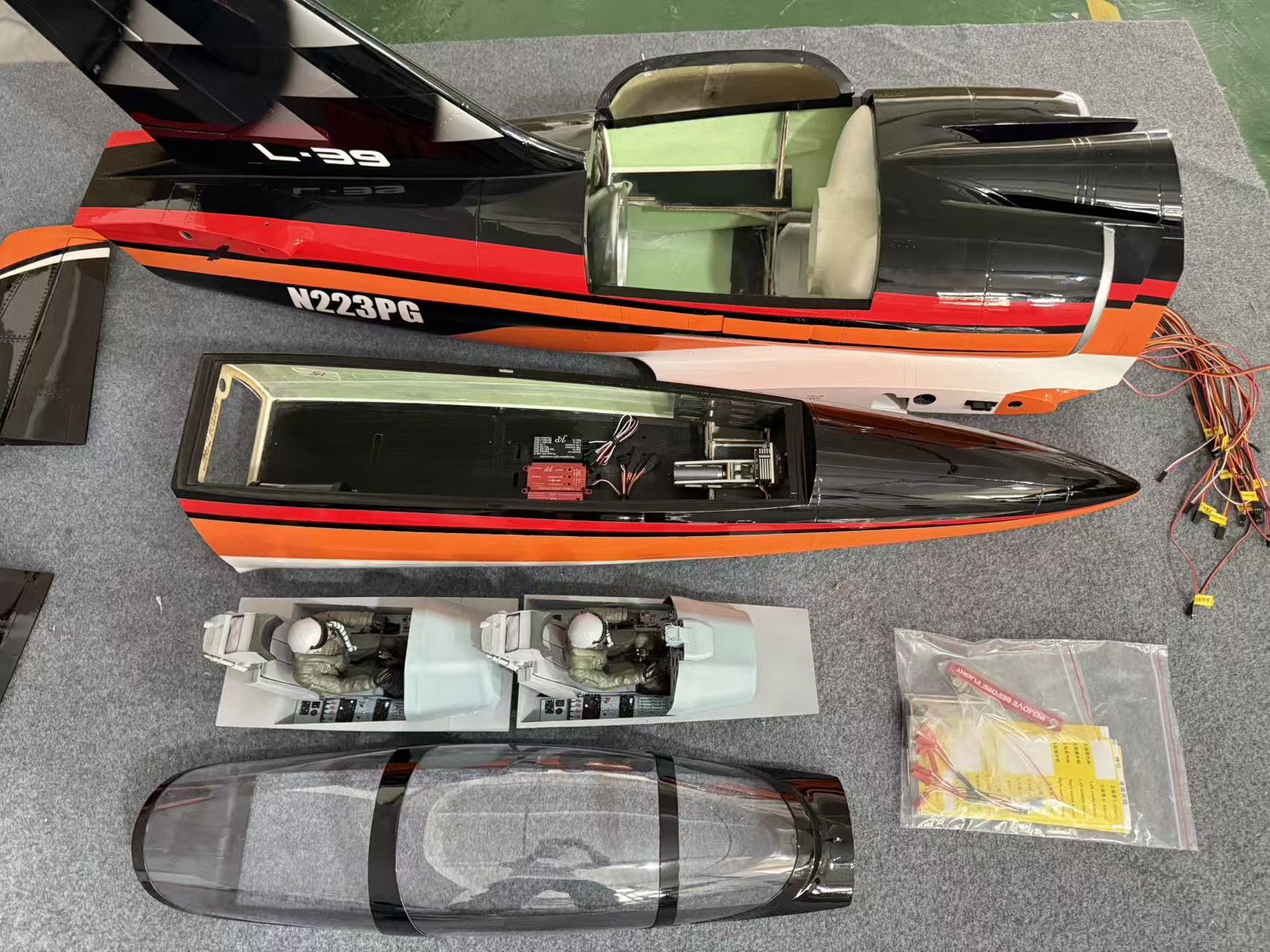

INCLUDED  HARDWARE:

Complete air frame (including fibreglass control horns)

Carbon fibre wing-tubes

Servo extension leads

Pre-prepared pushrods with ball links

Pre-glued control horns

Fixed Dual wall thrust pipe (for 120-170N turbines)

Fuel tank (3800ml)

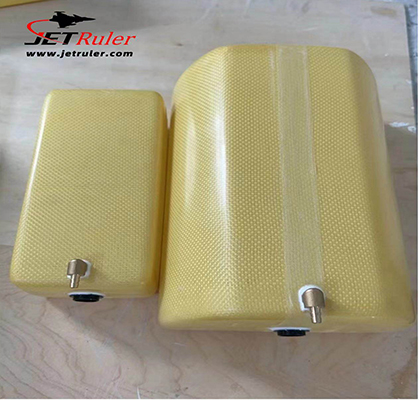

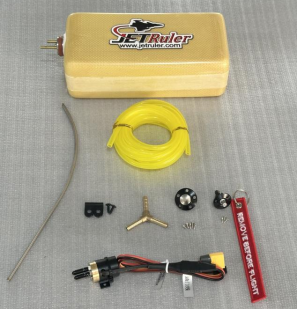

Smoke system：（Optional configuration） The smoke system incorporates a 1-liter Kevlar fuel tank.



UAT：220cc

REQUIRED HARDWARE:

Turbine: 120-170N

Servos: x12

x6 middle size servo,12-20kg

x6 standard size servo, 30-40kg

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

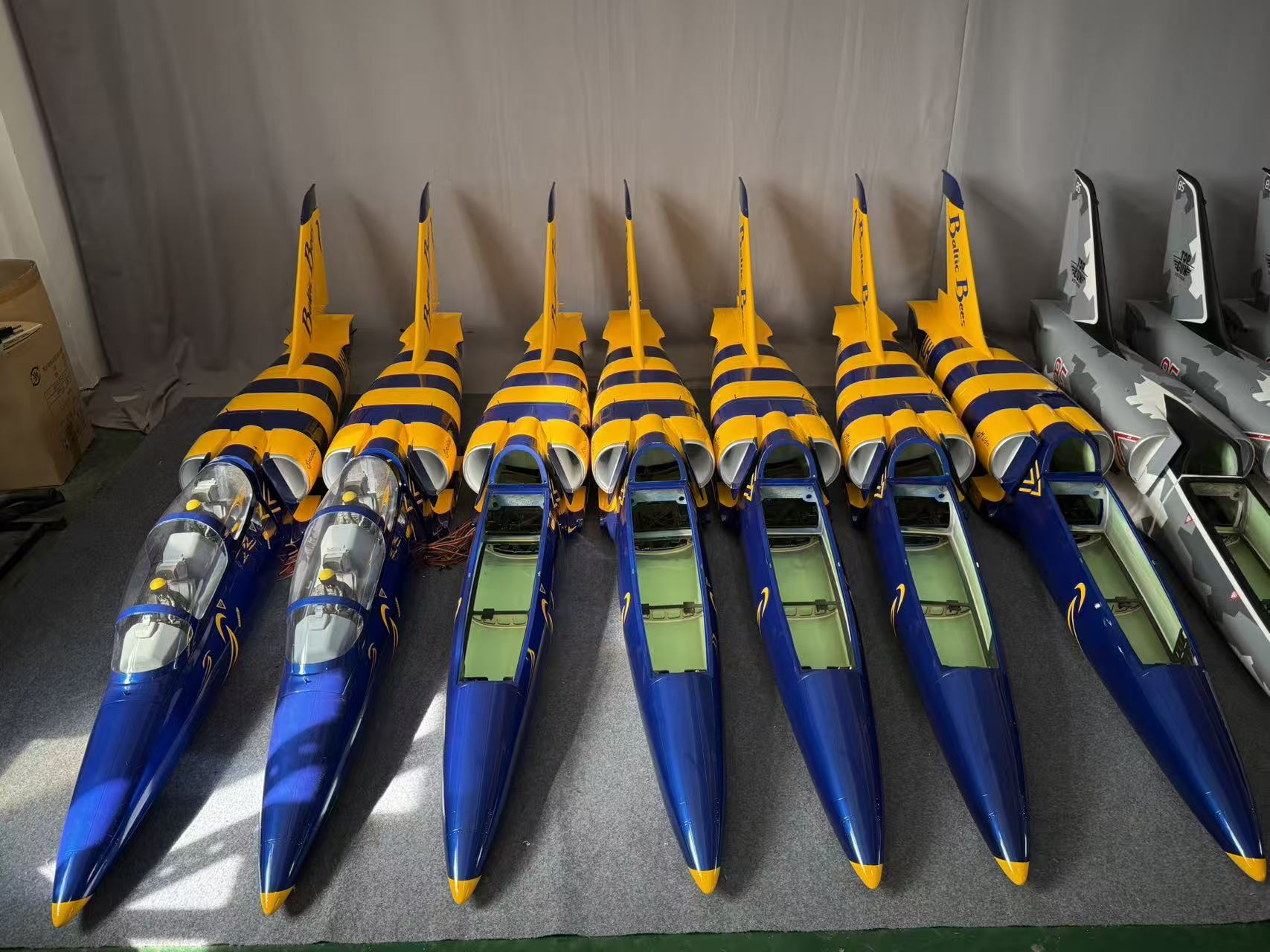

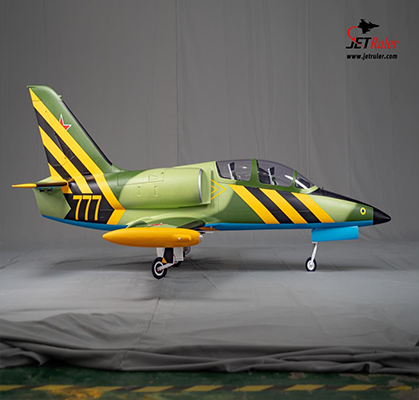

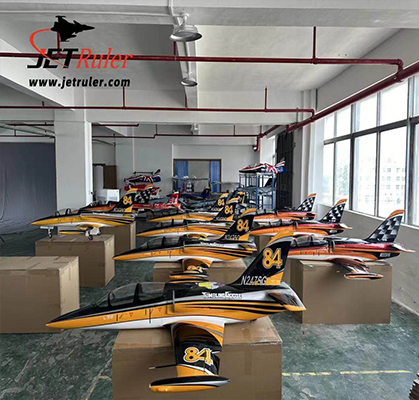

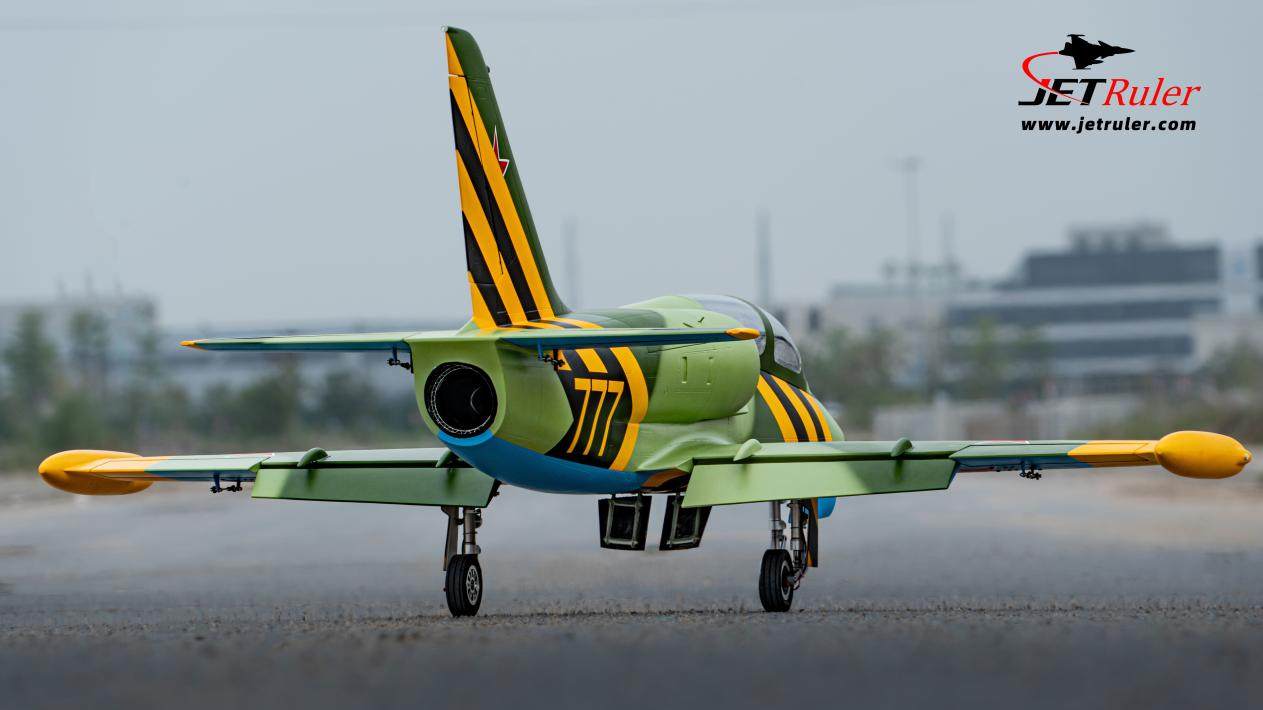

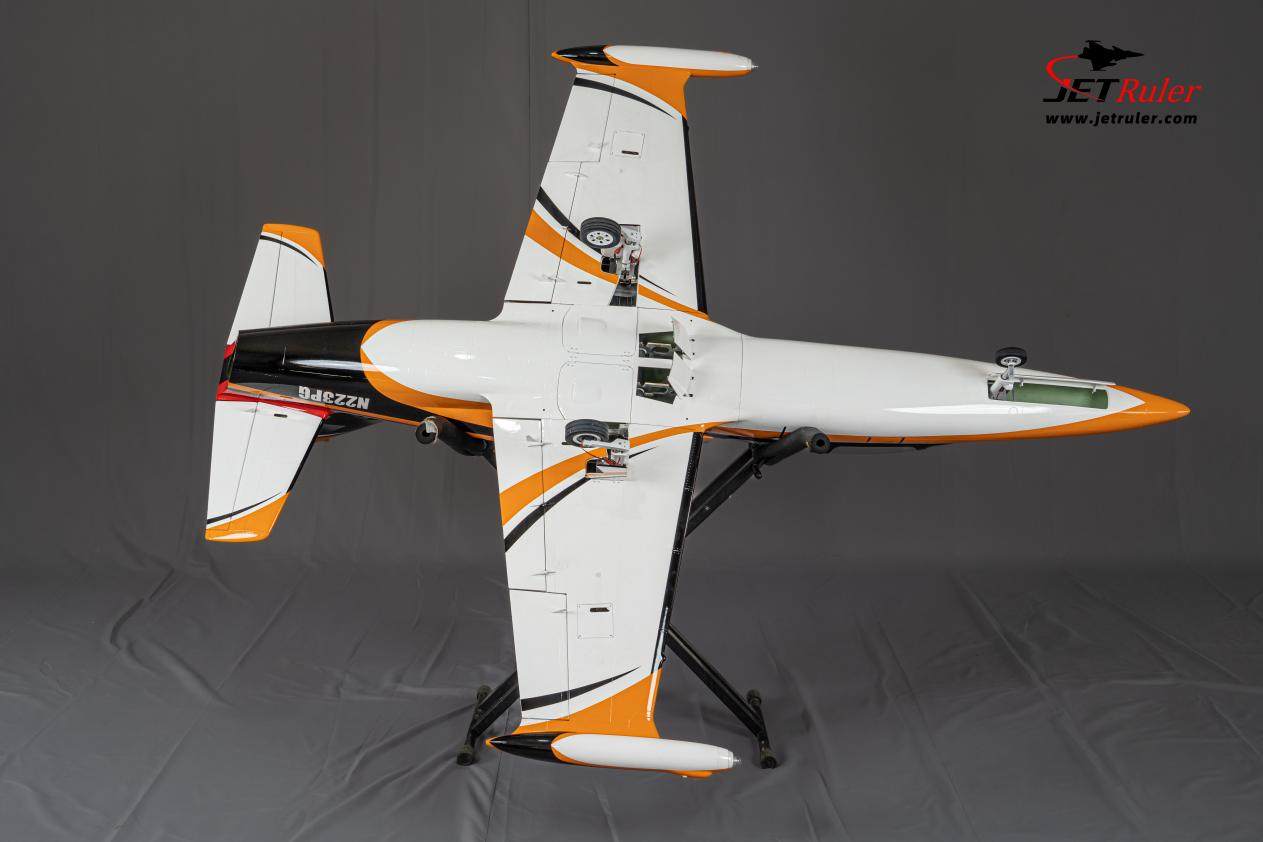

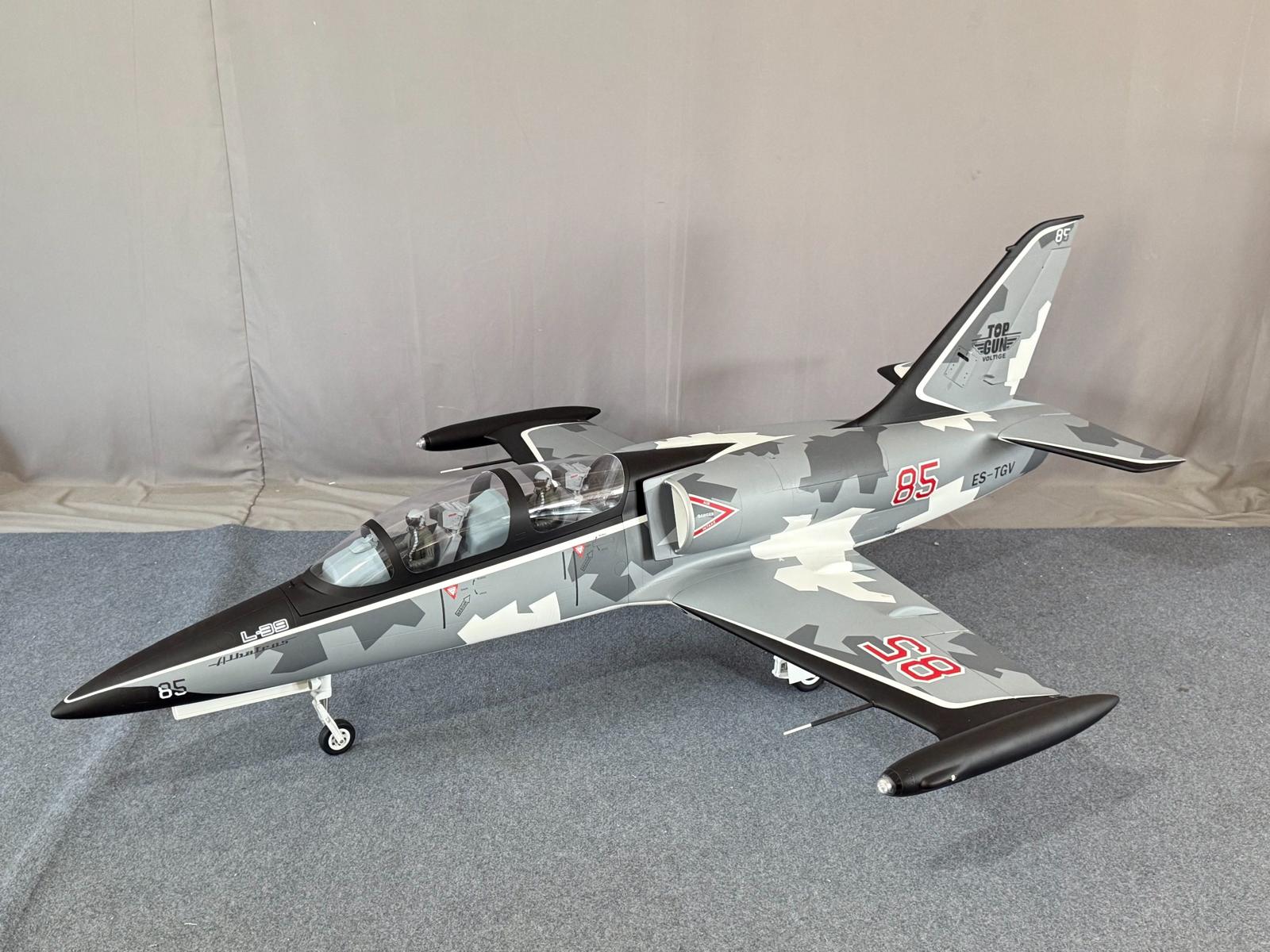

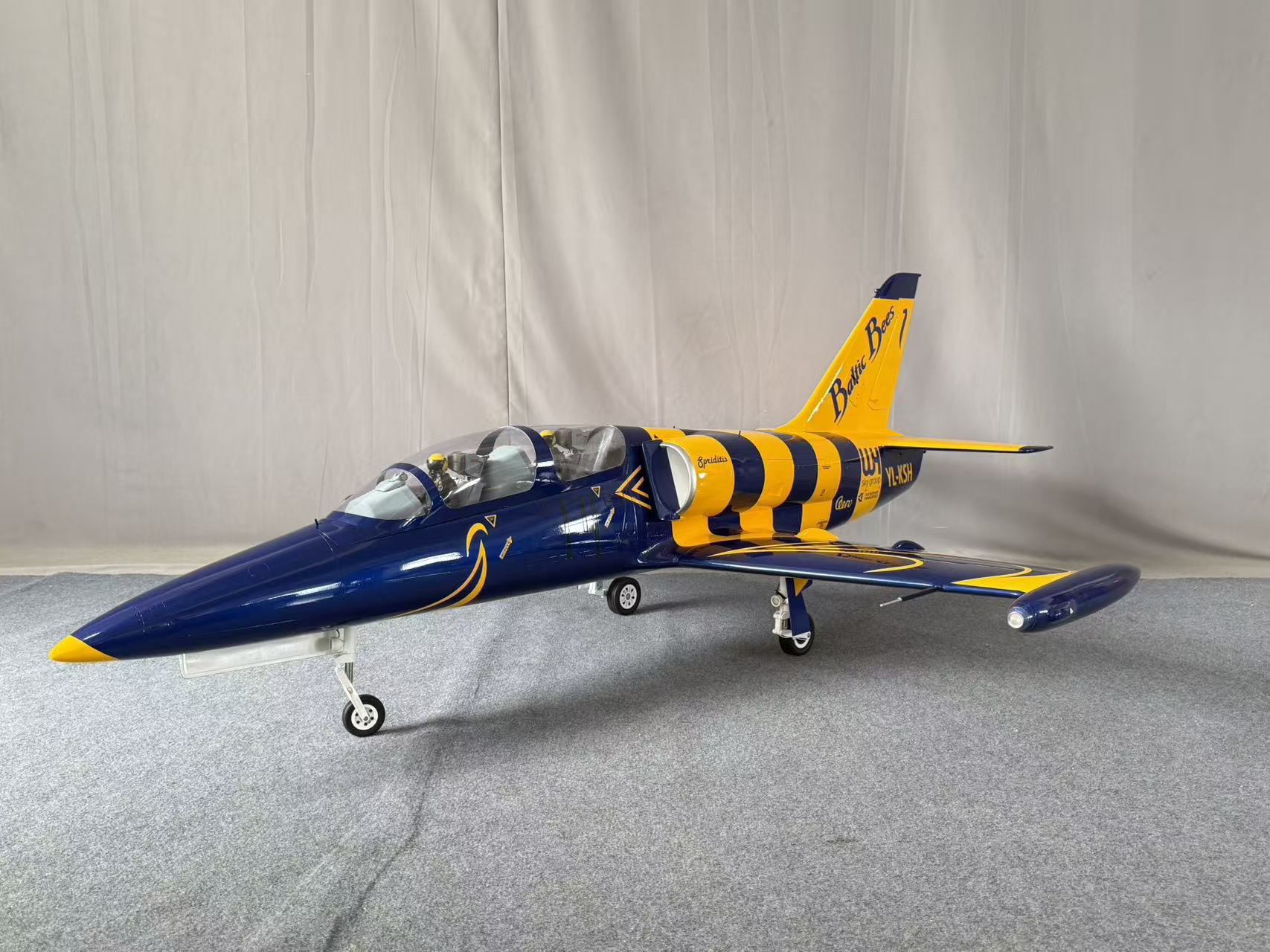

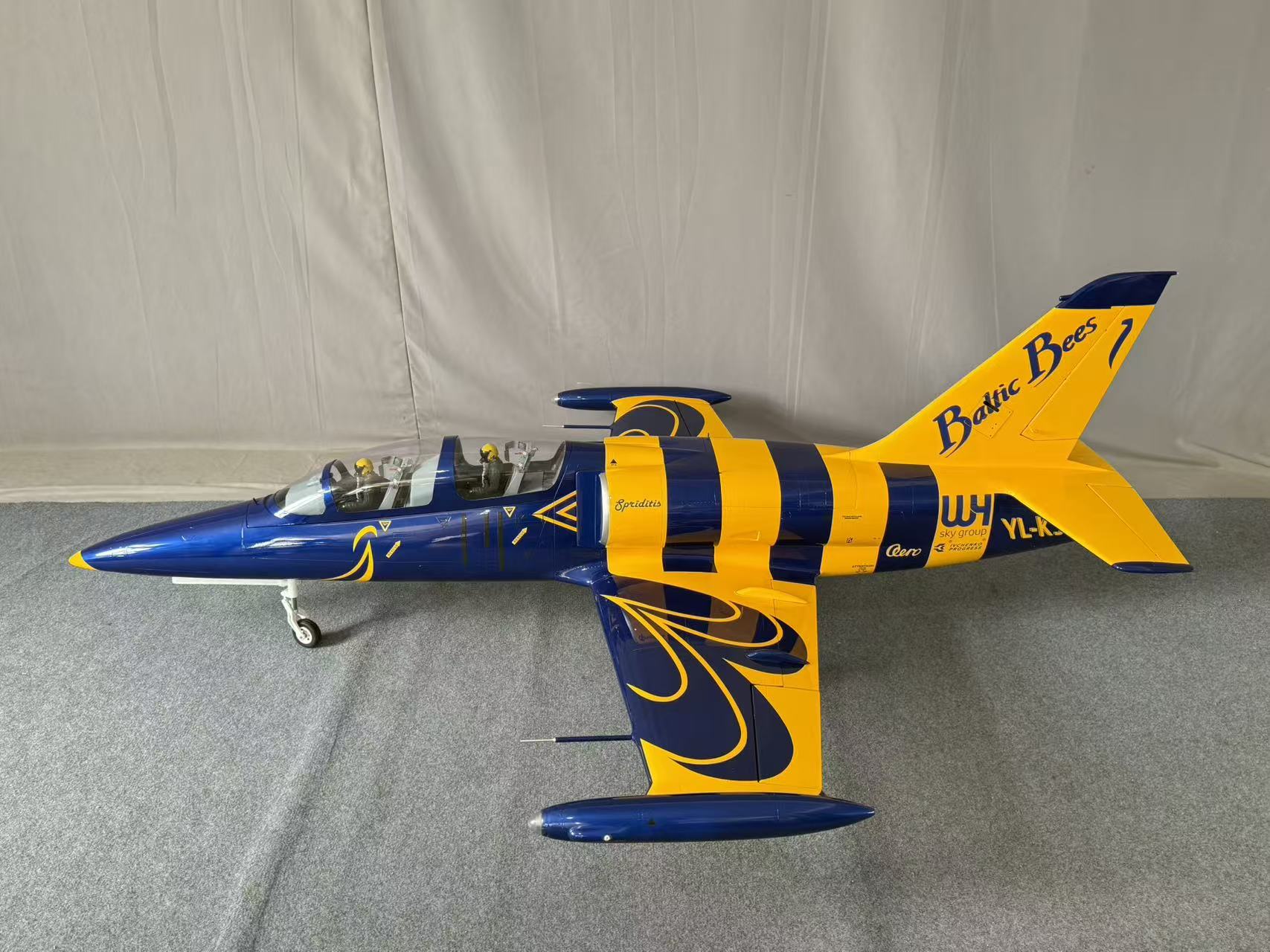

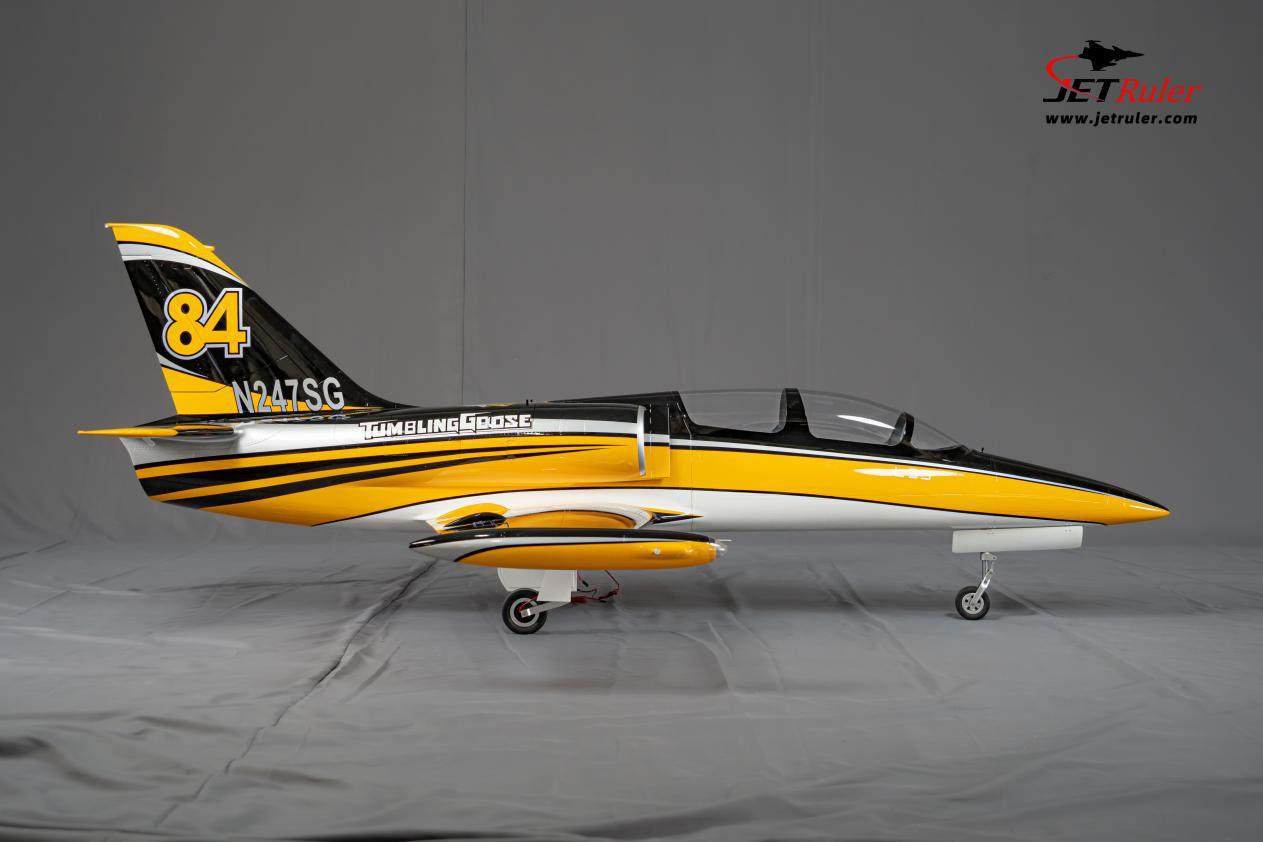

Product Display

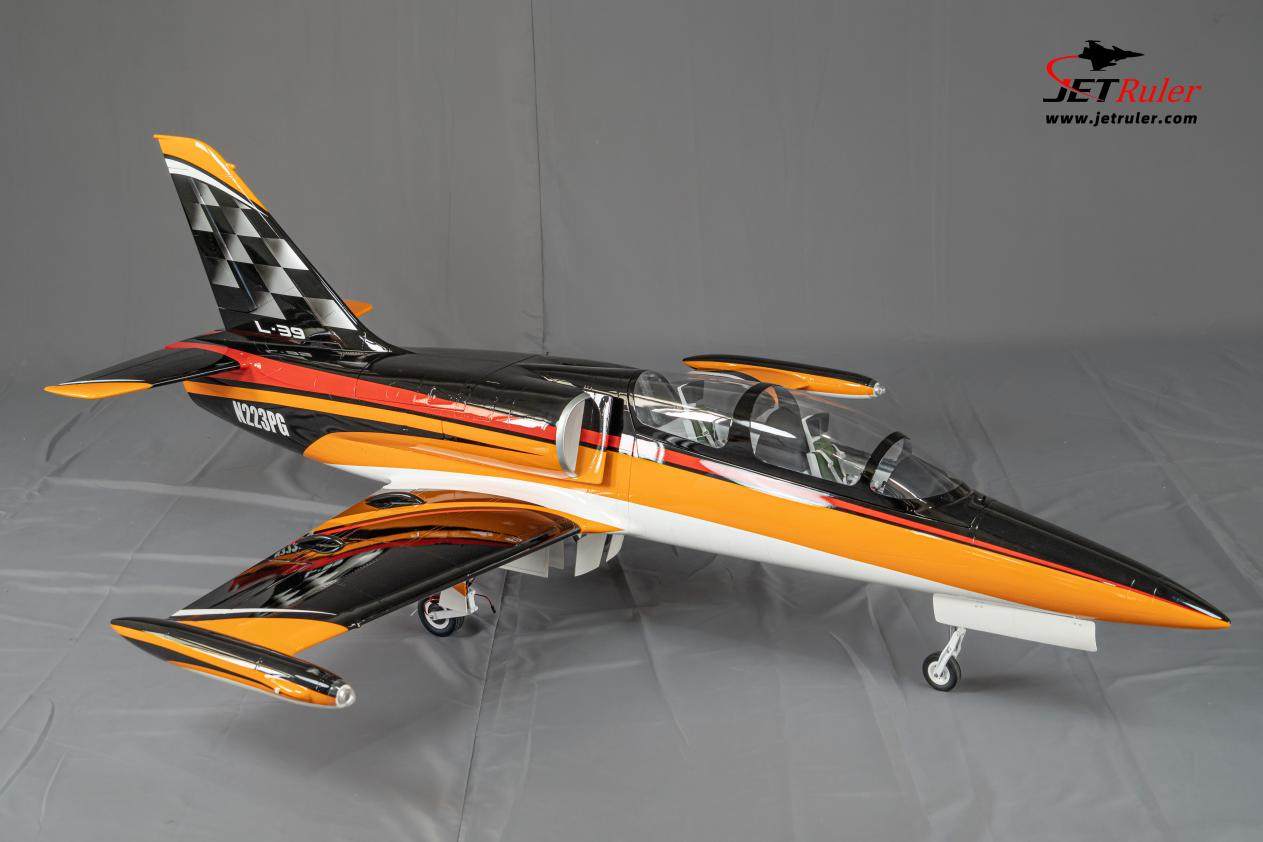

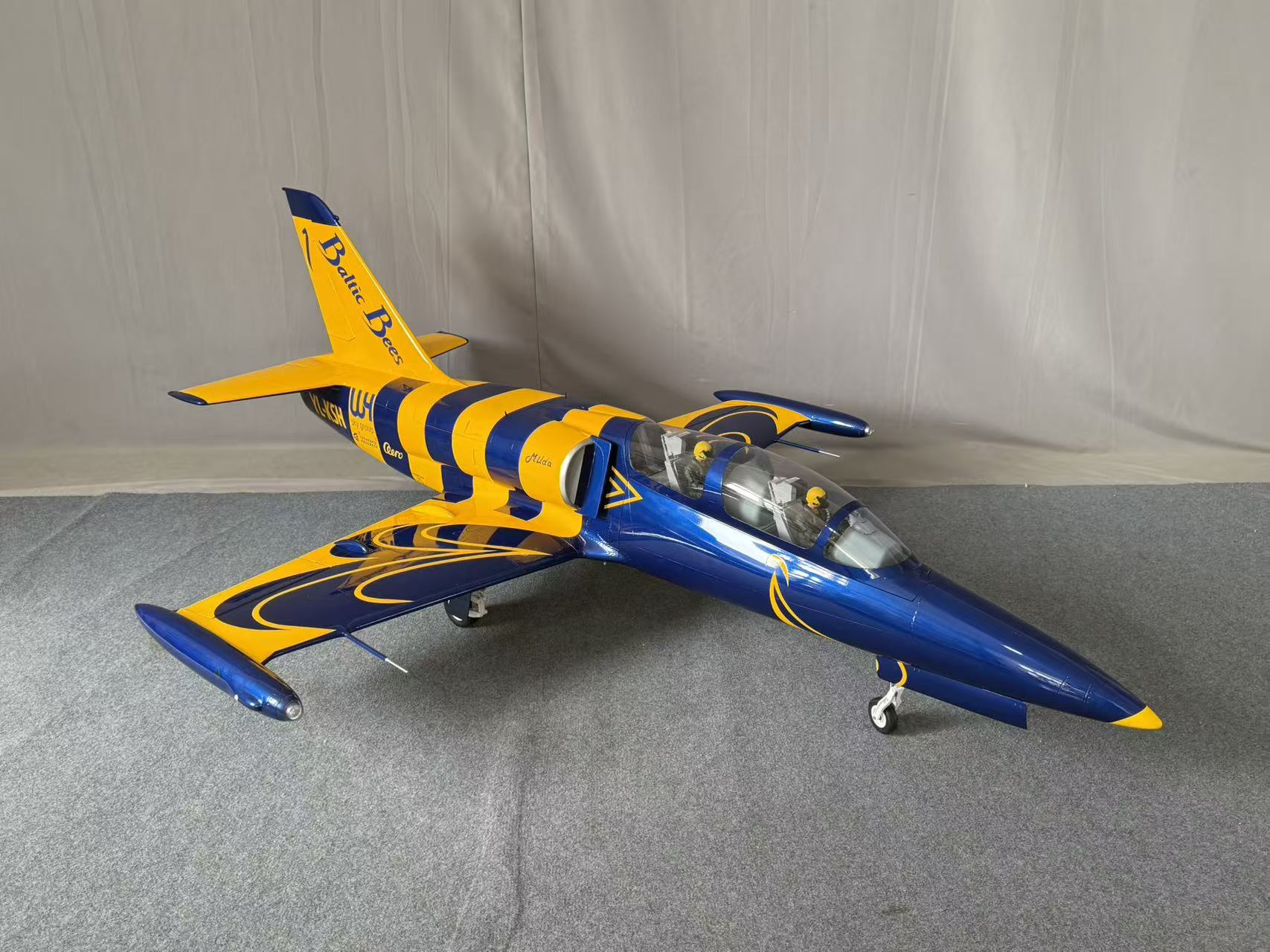

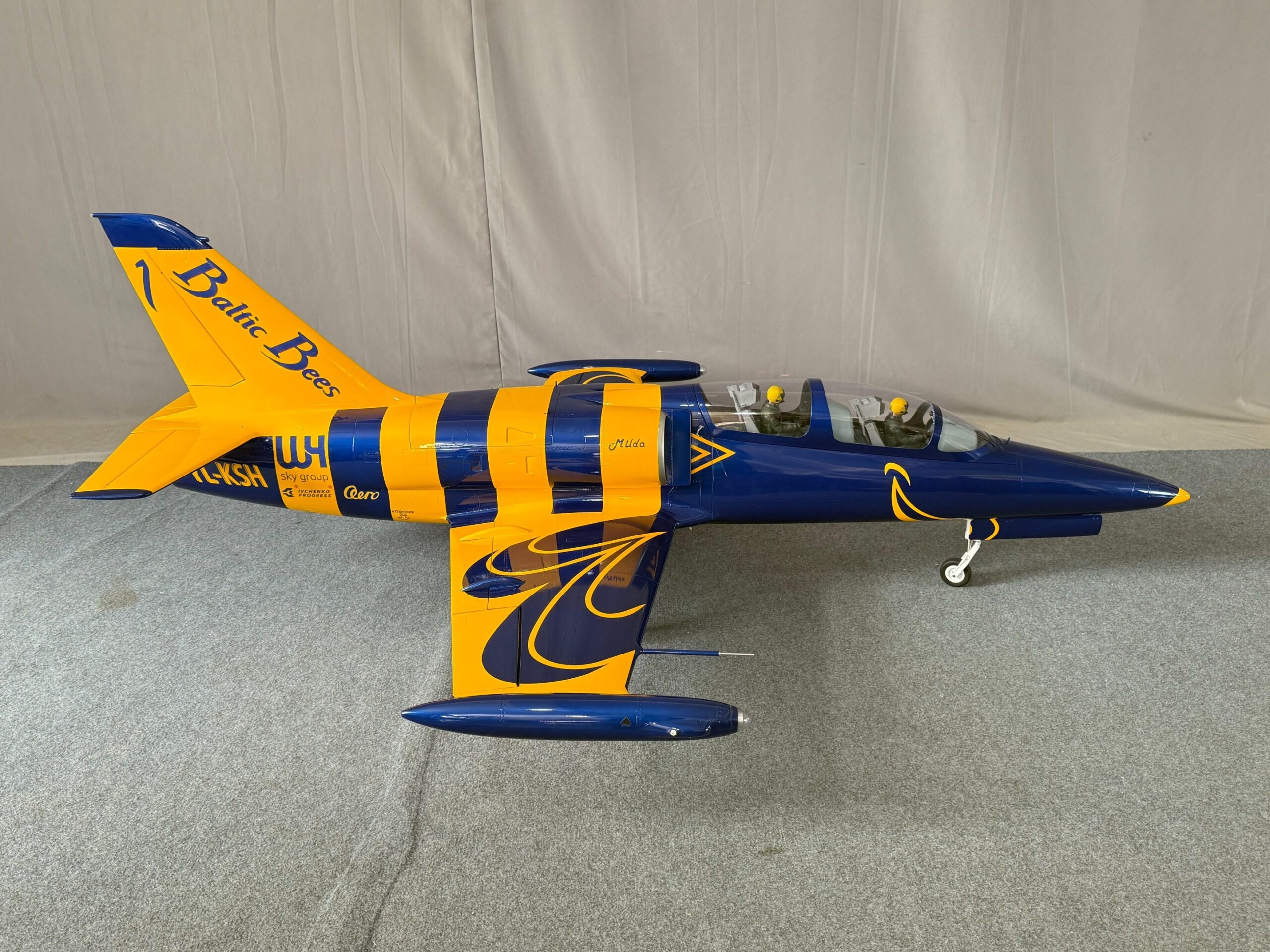

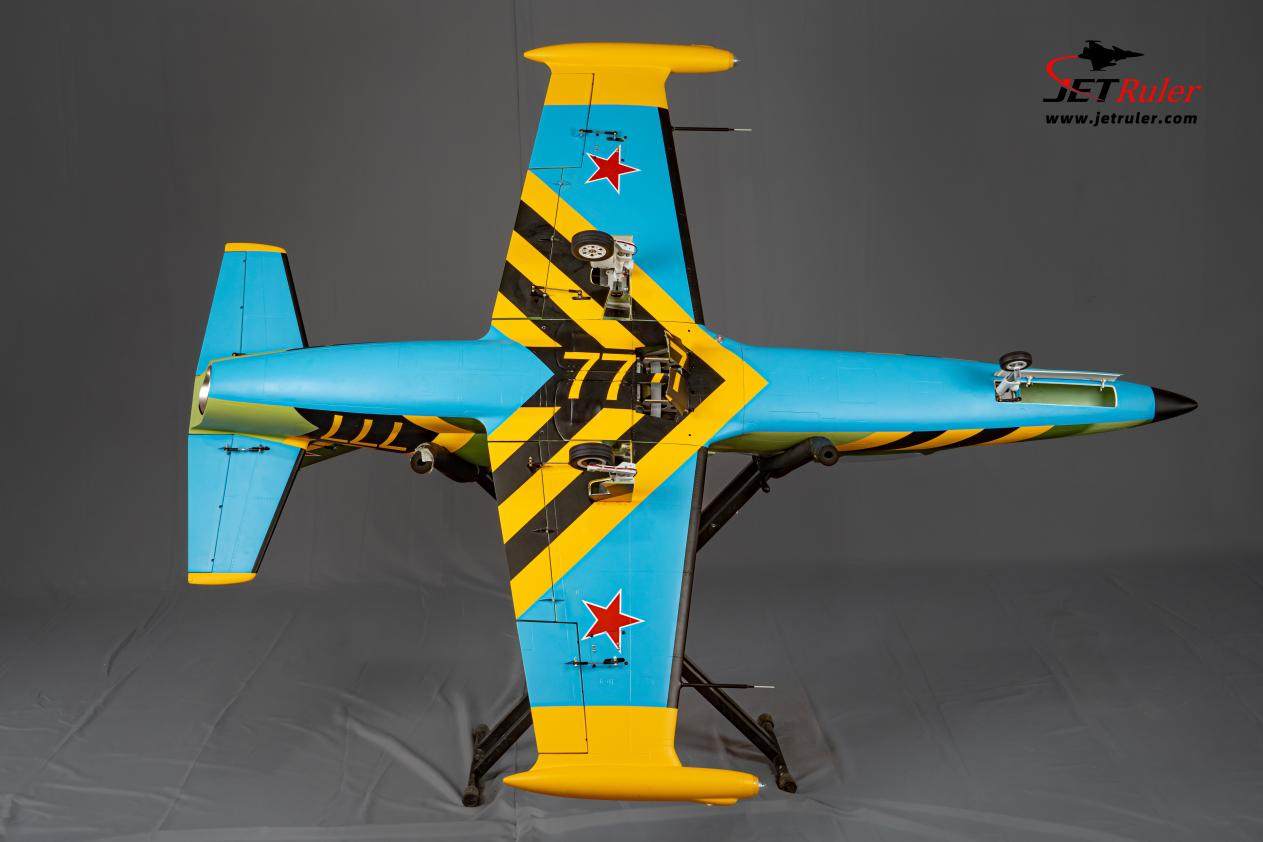

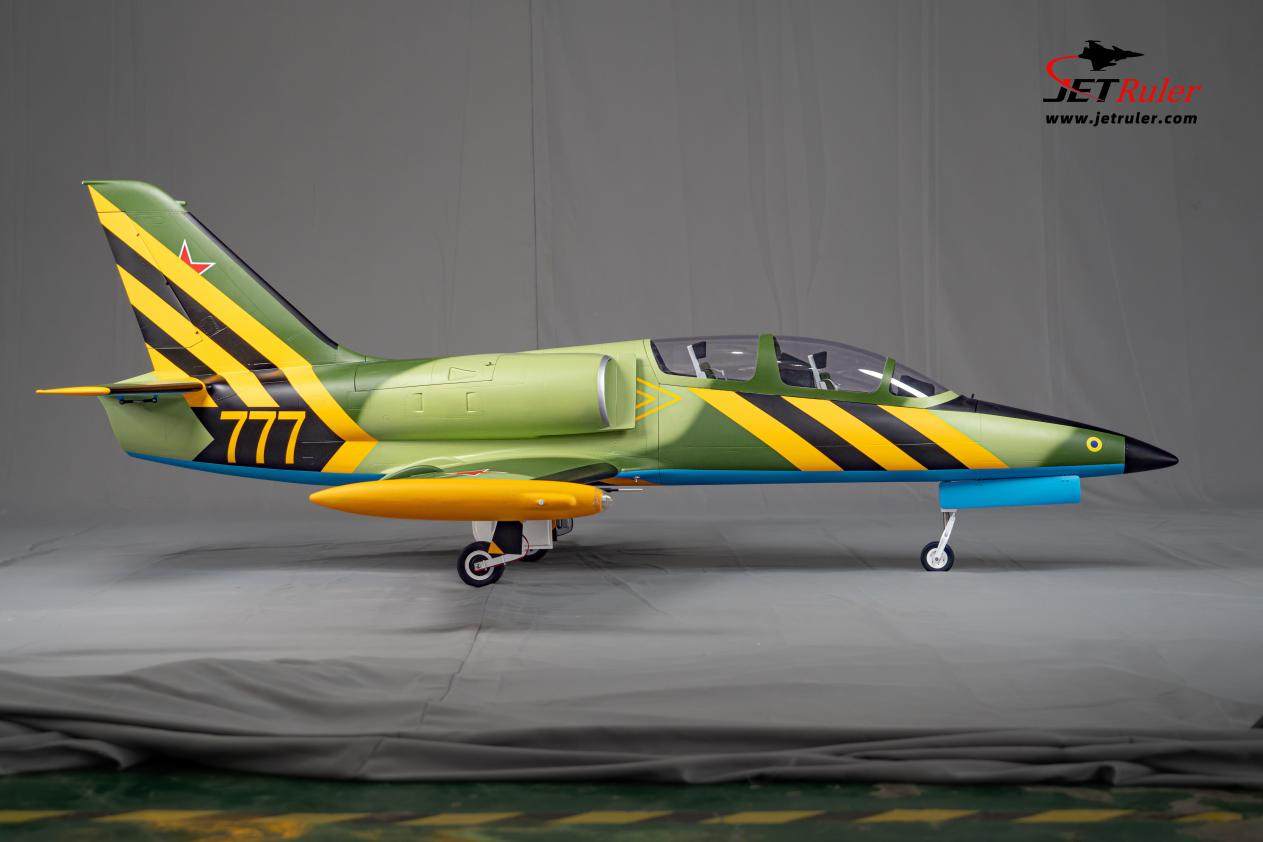

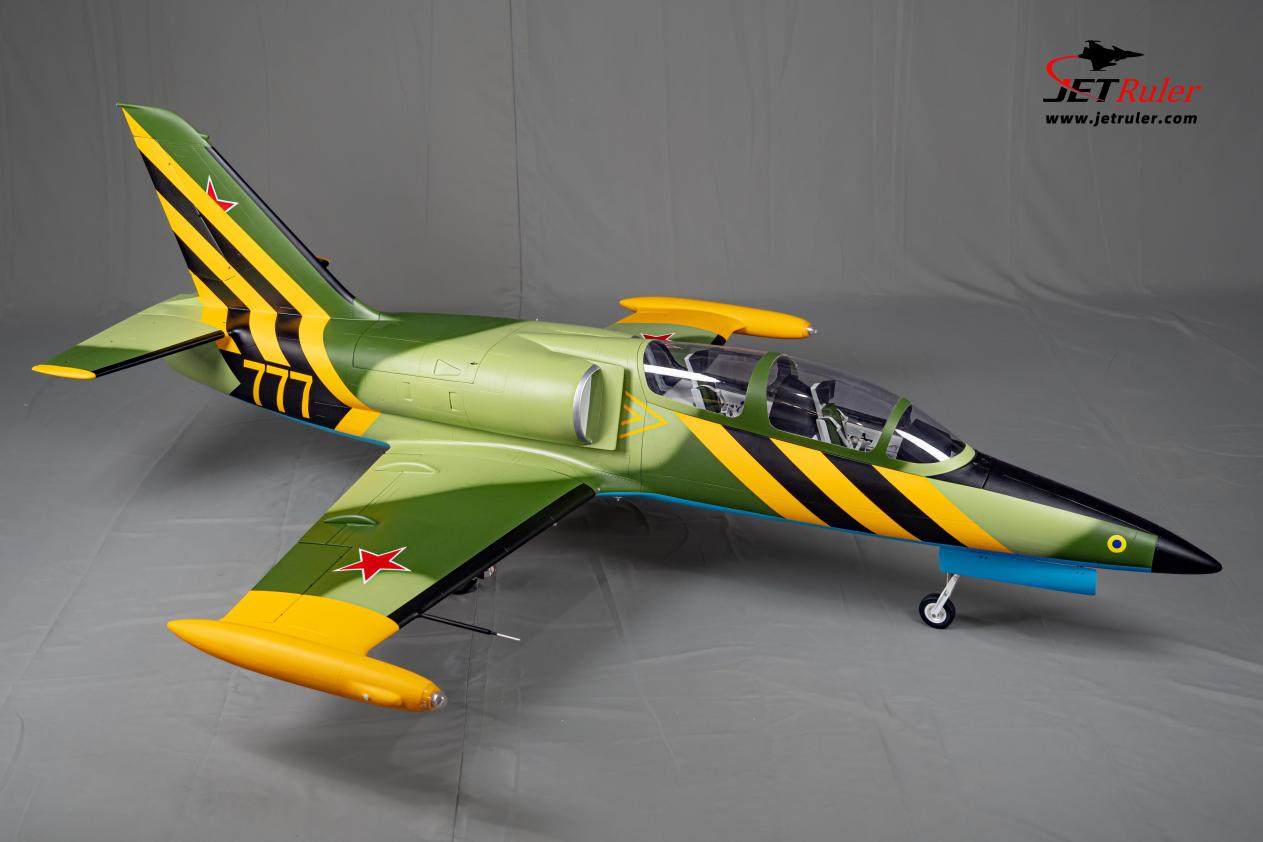

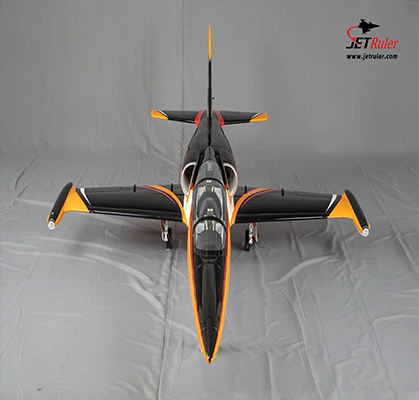

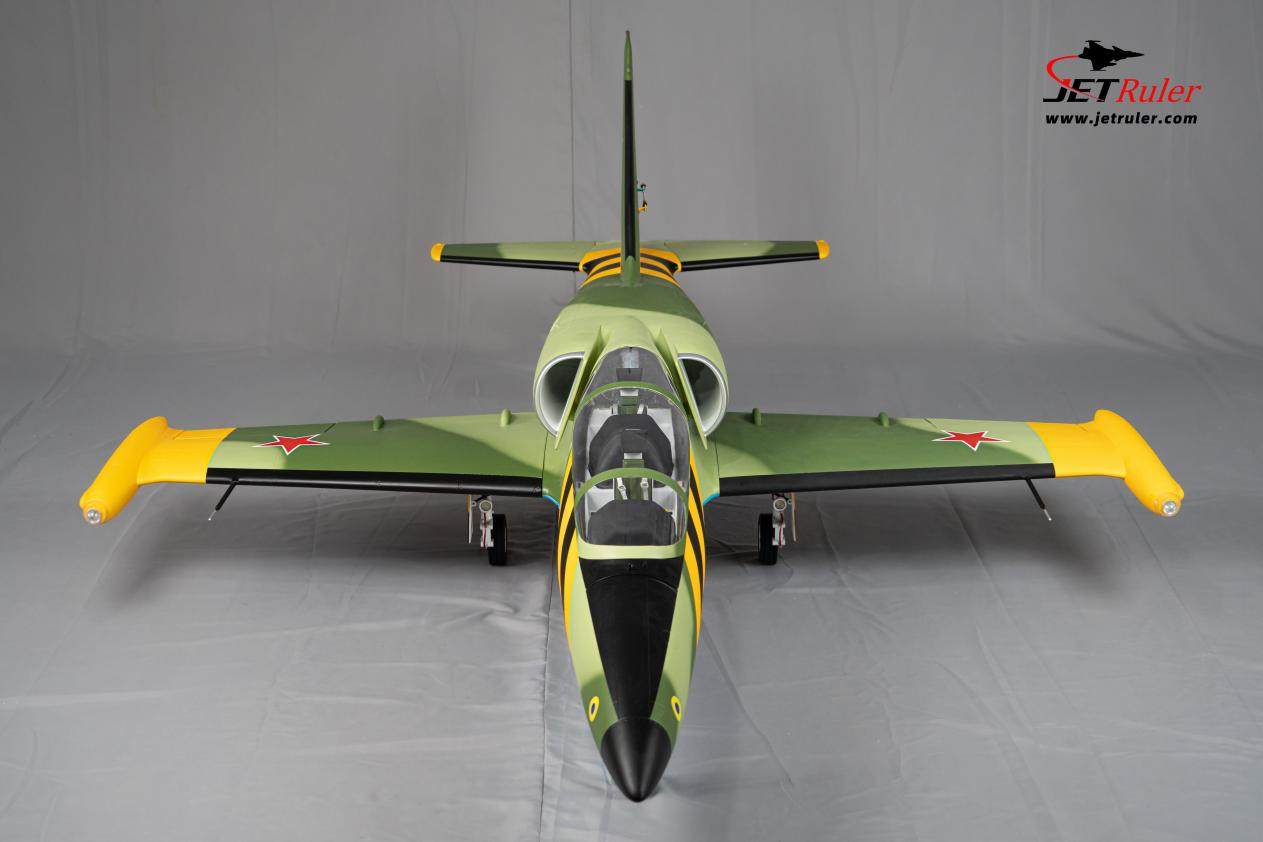

Colour scheme 01

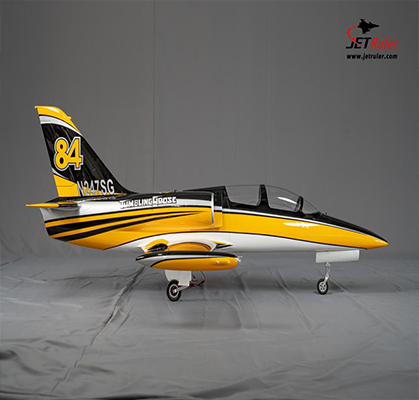

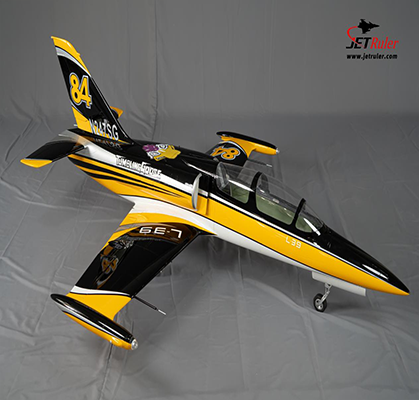

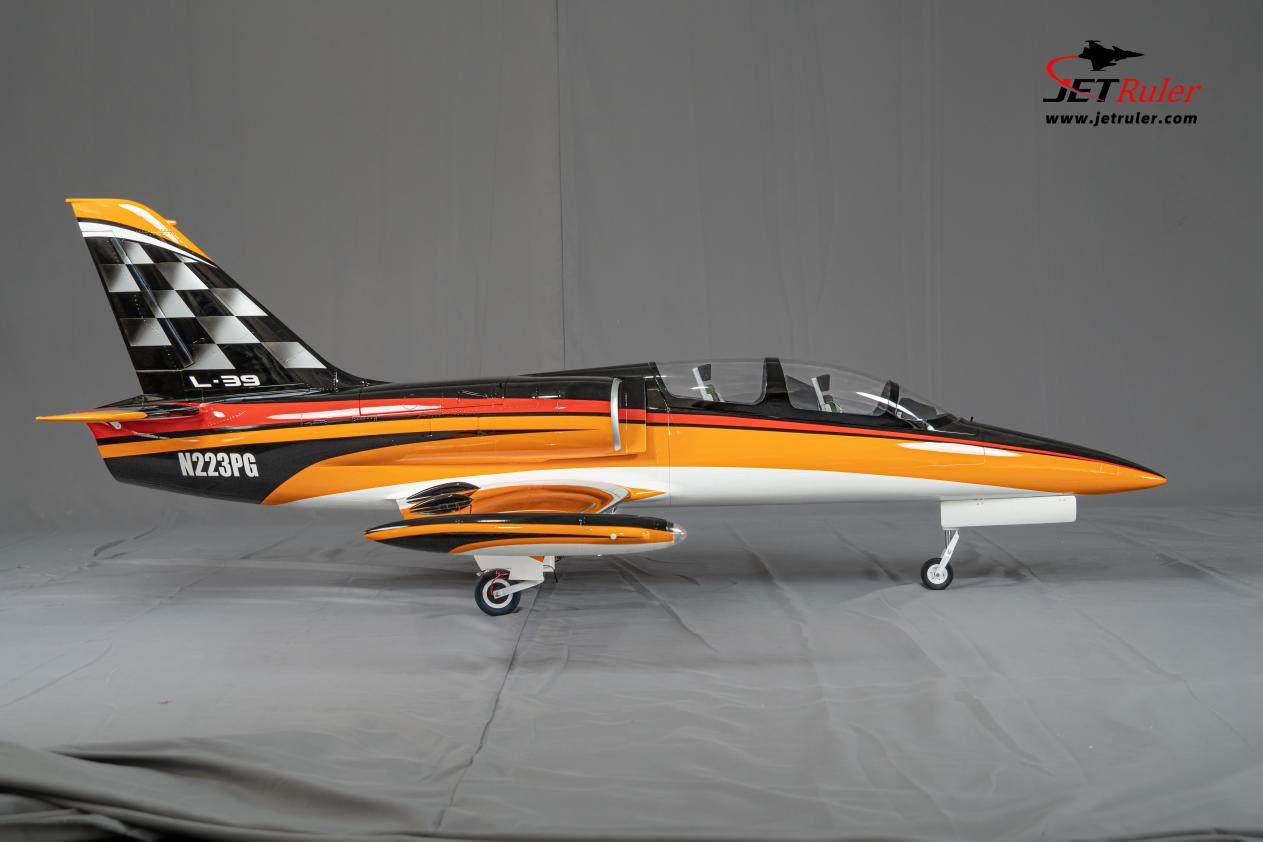

Colour scheme 02

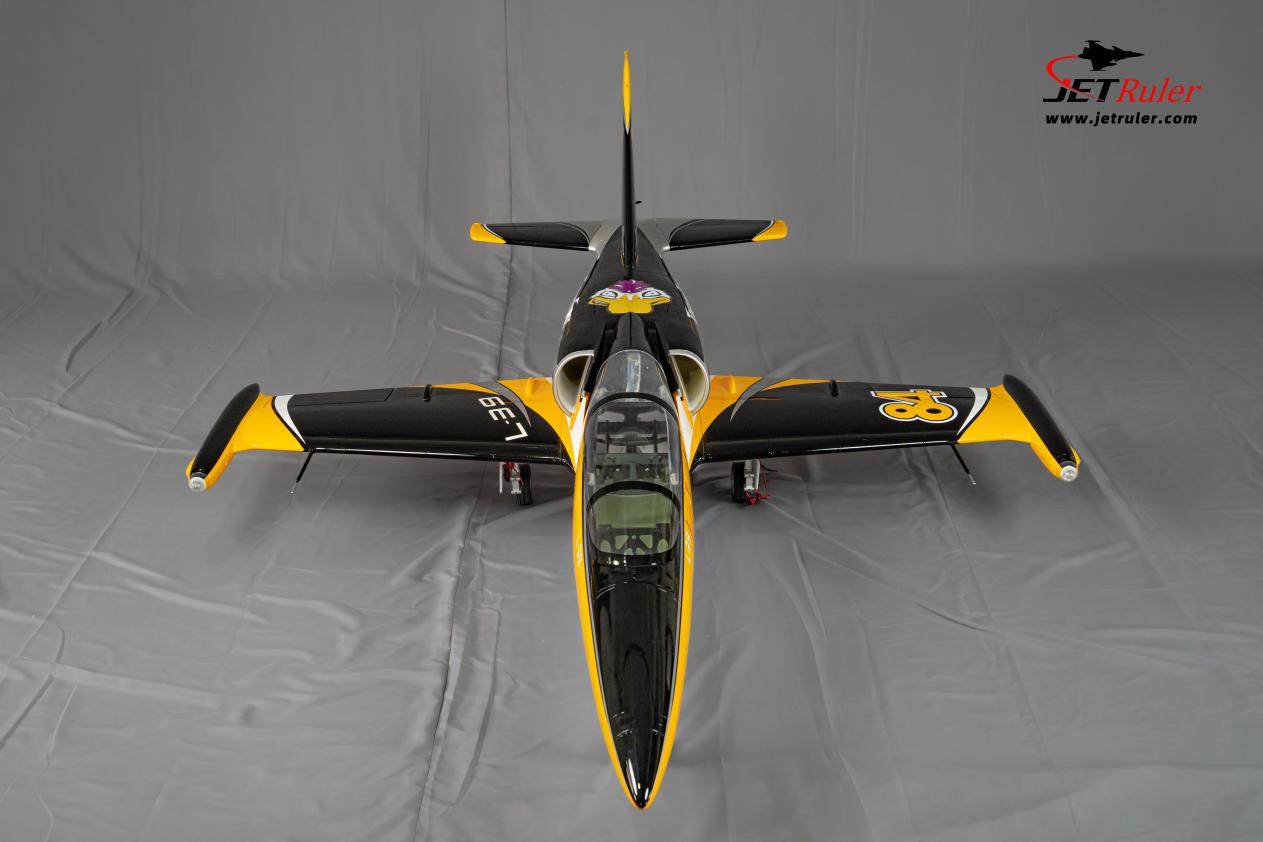

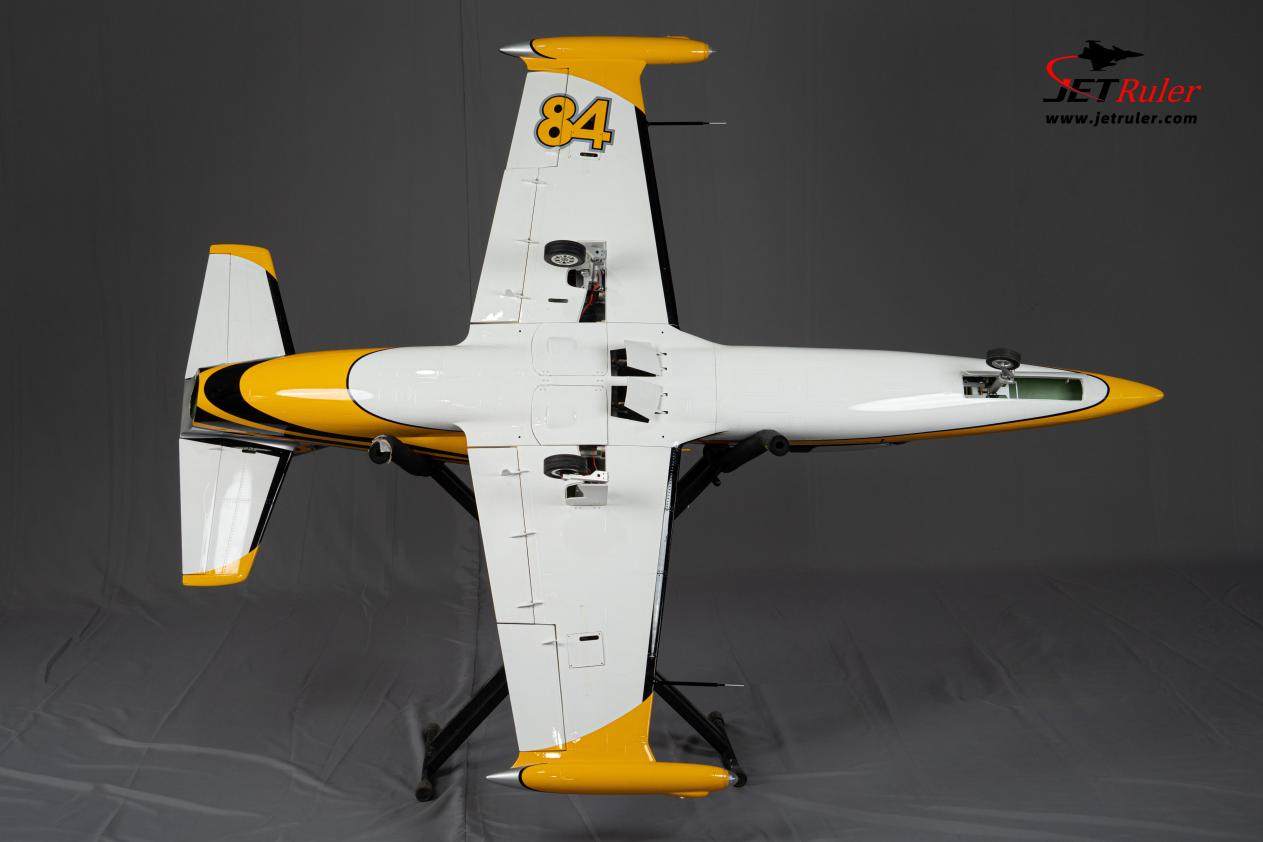

Colour scheme 03

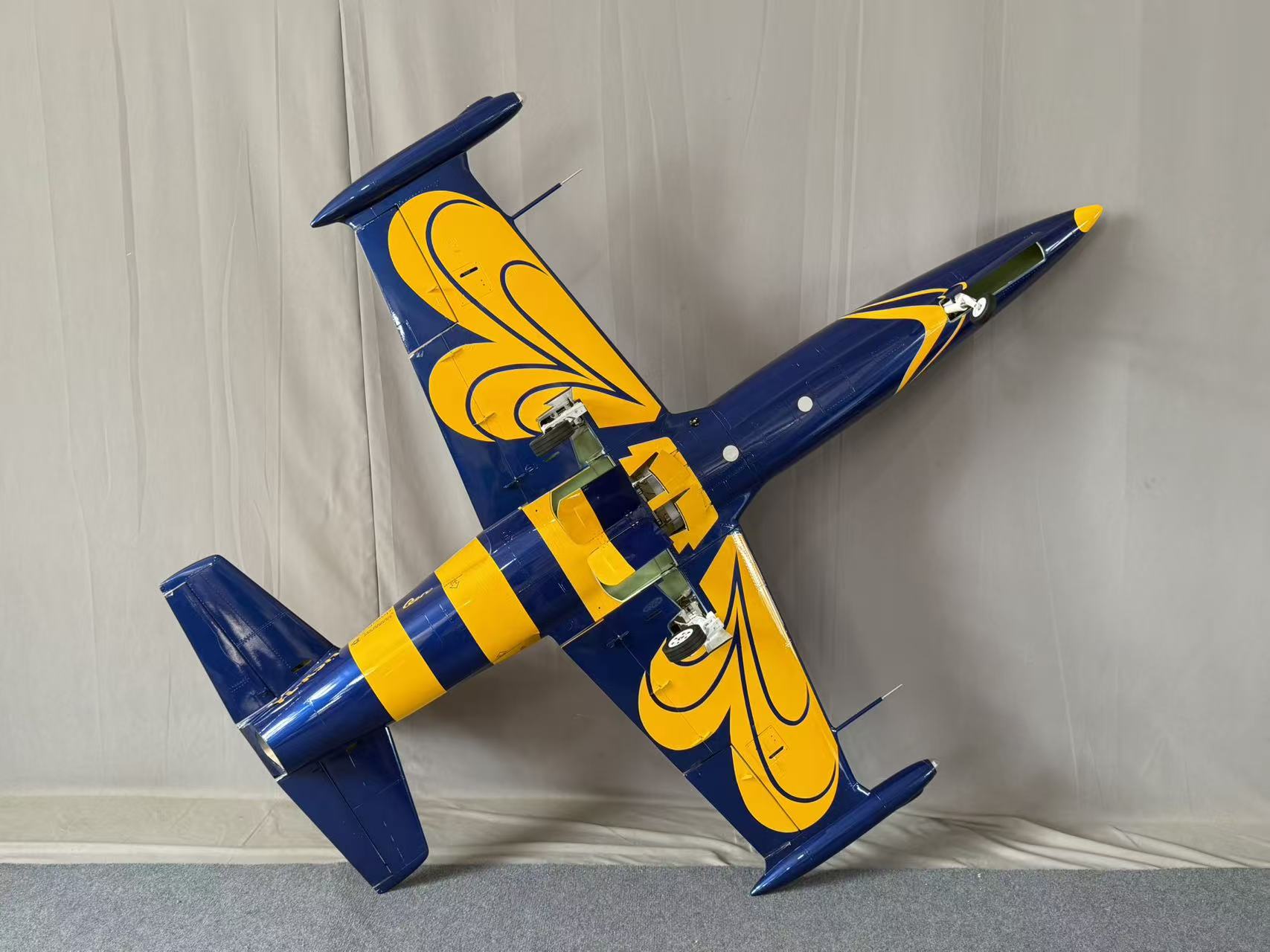

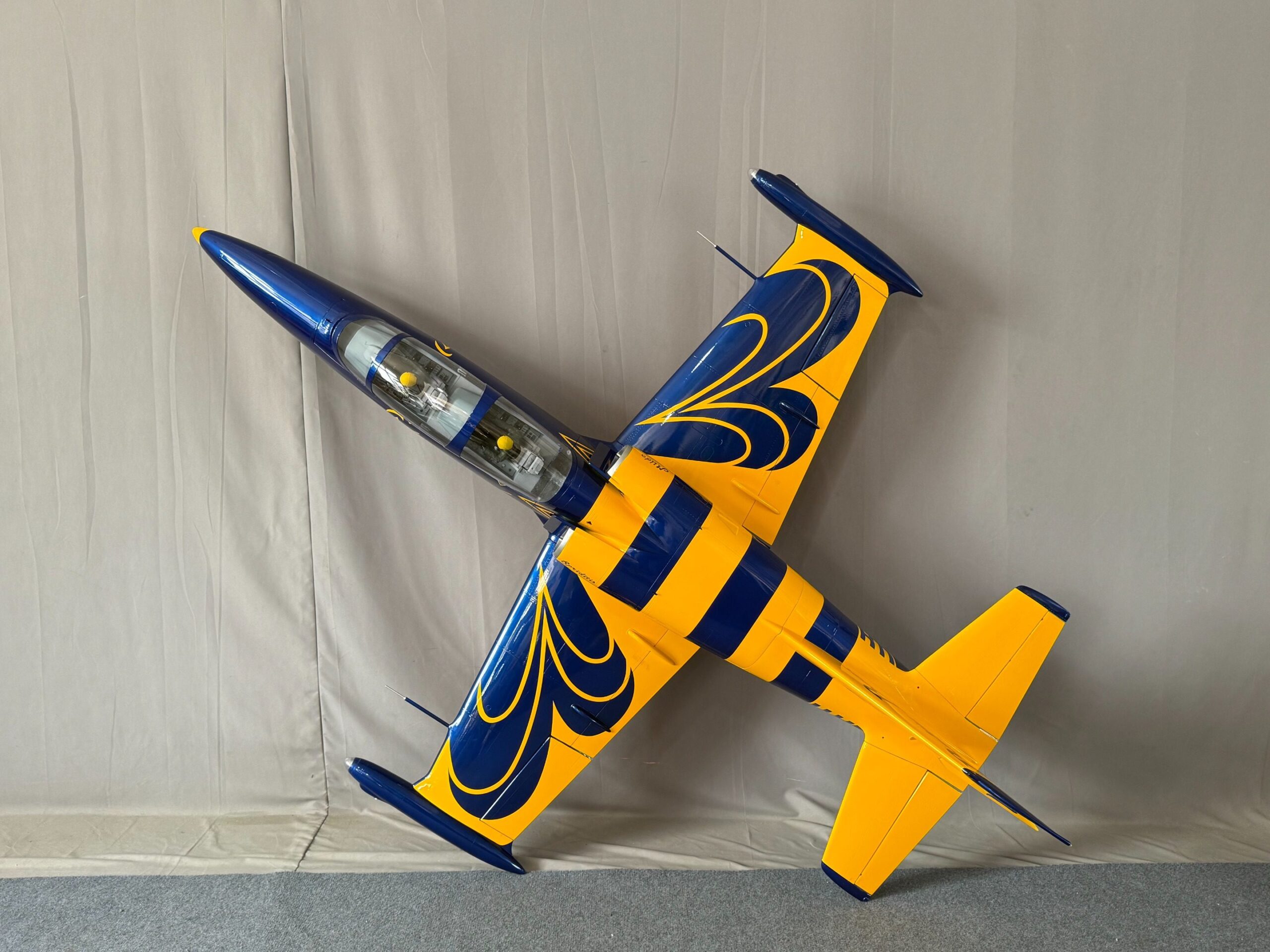

COLOUR SCHEME 4 –

COLOUR SCHEME 5 –

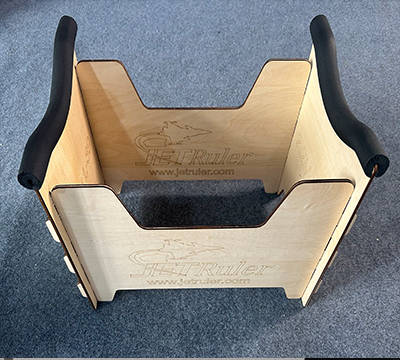

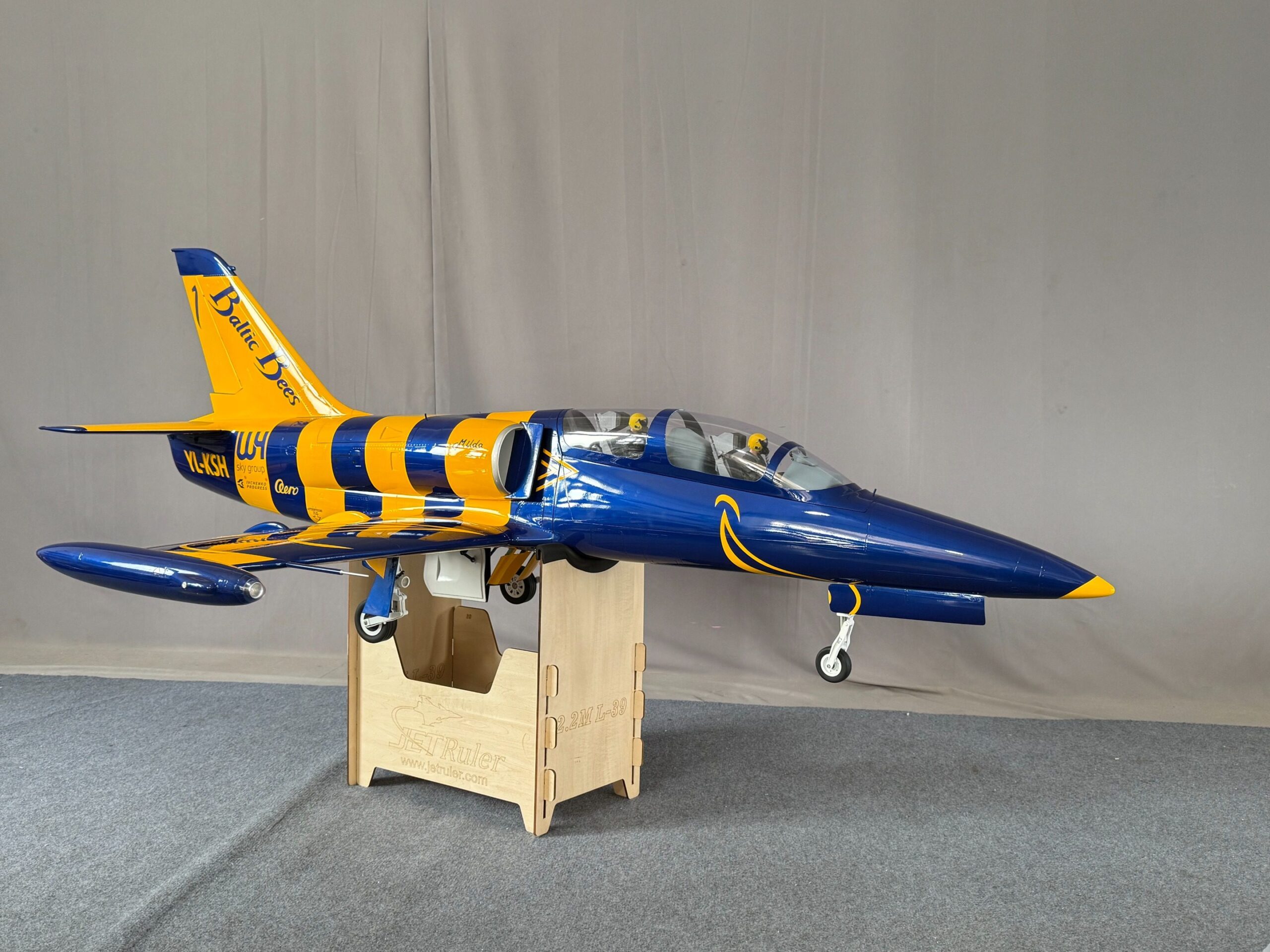

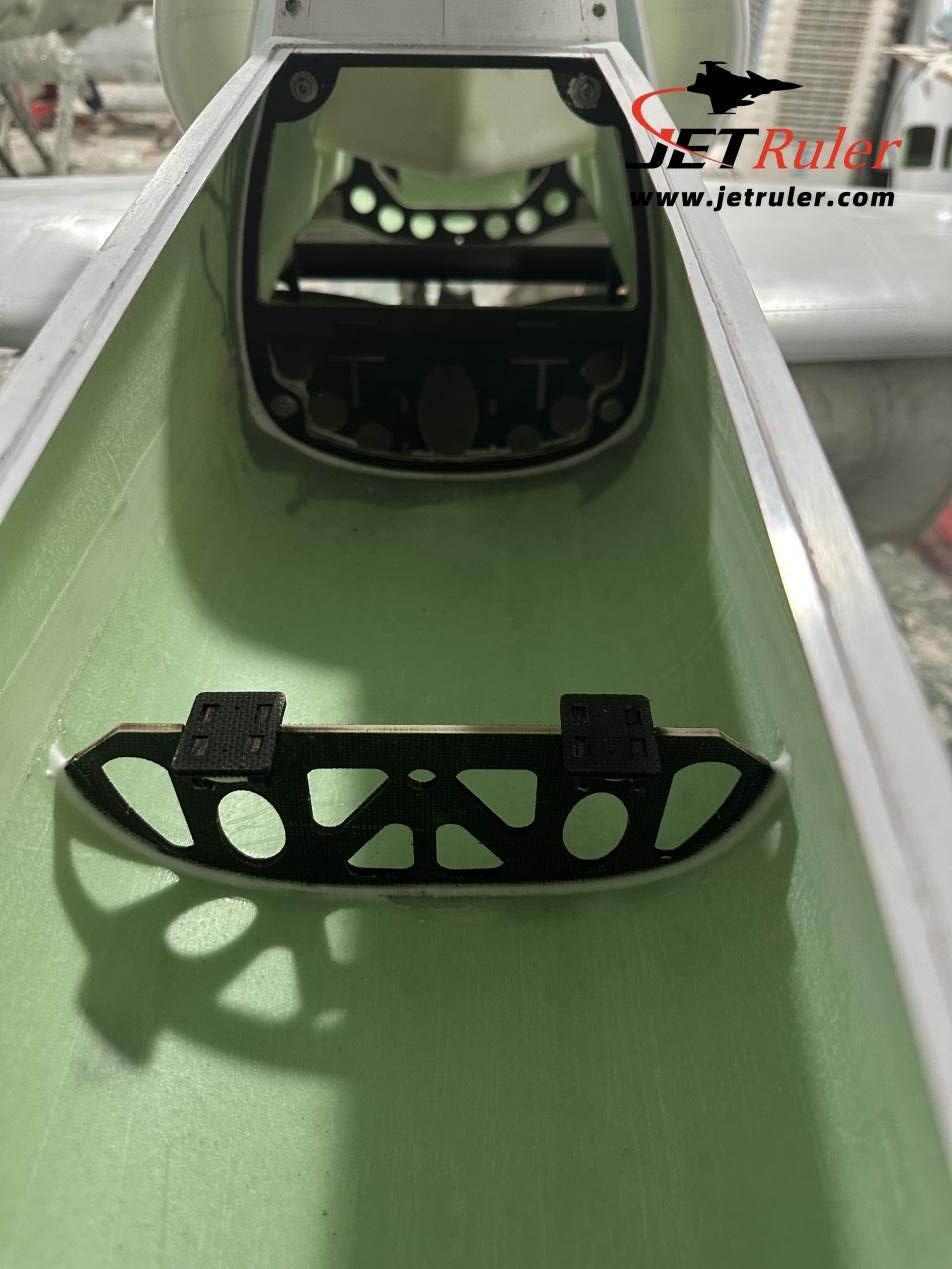

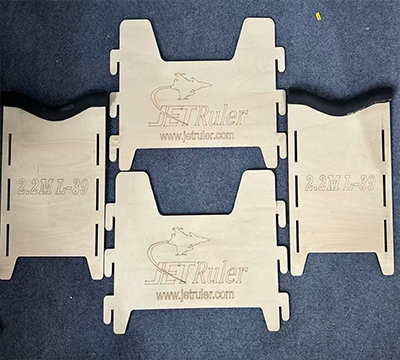

 we are free provide the bracket for every customer as following

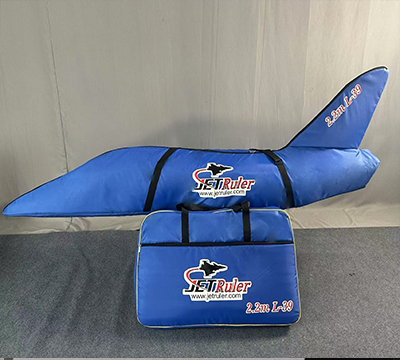

Wing bag and fuselage bag :
