2.6M FC-1

Description

JET RULER 2.6 FC-1

We wanted this one to go above and beyond as a beautiful scale model. We found ways to make it reliable and tough enough to actually be flown on a regular basis, and not a problem to transport or put together, all in a package that fly’s brilliantly well.

SPECIFICATION:

Model: 2.6M FC-1

Wingspan:1500 mm

Length:2550 mm

Weight: 12kg（without fuel）

BASIC SETUP:

Control throws:

Aileron: 20 degrees up / 20 degrees down – 65% Expo

Rudder: 25 degrees left / 25 degrees right – 50% Expo

Elevator: 20 degrees / 20 degrees – 50% Expo

The CG is 170mm from the front leading edge on the root of the wing (Factory Settings)

FEATURES:

Full composite construction, lightweight and strong

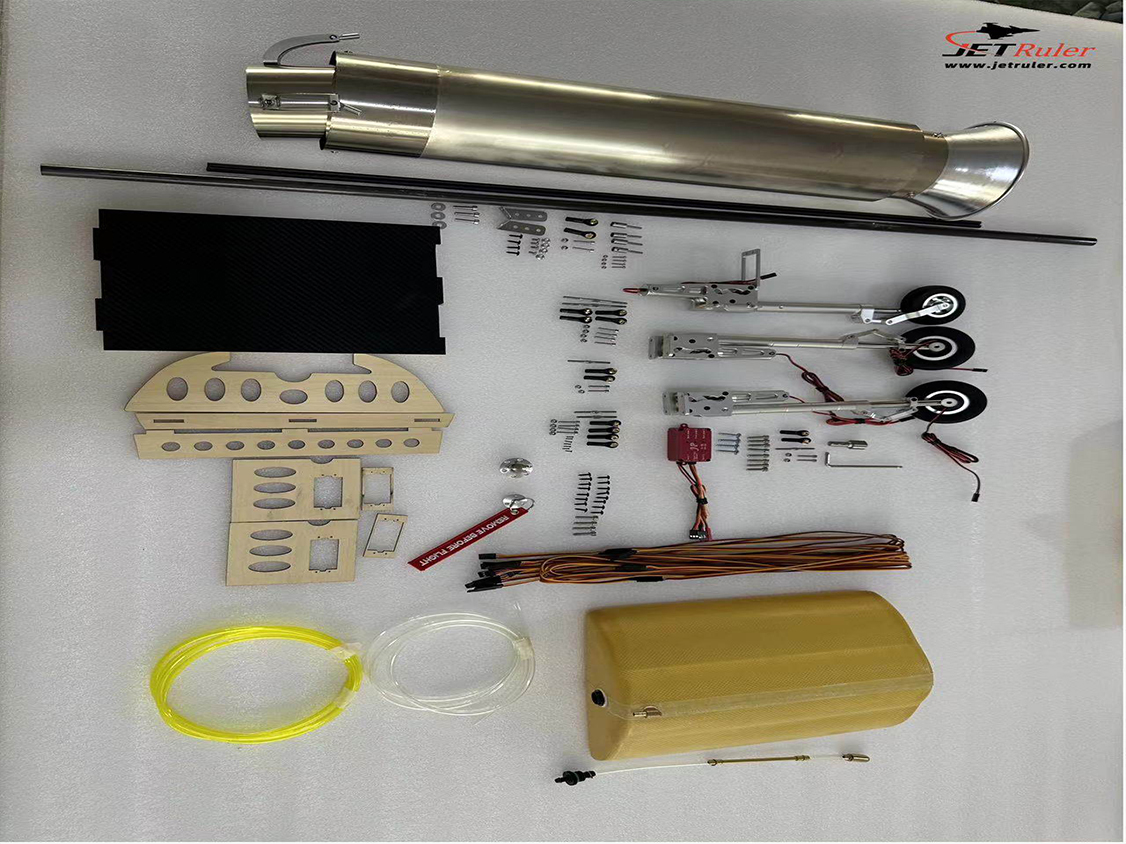

INCLUDED HARDWARE:

Complete air frame (including fibreglass control horns)

Carbon fibre wing-tubes

Servo extension leads

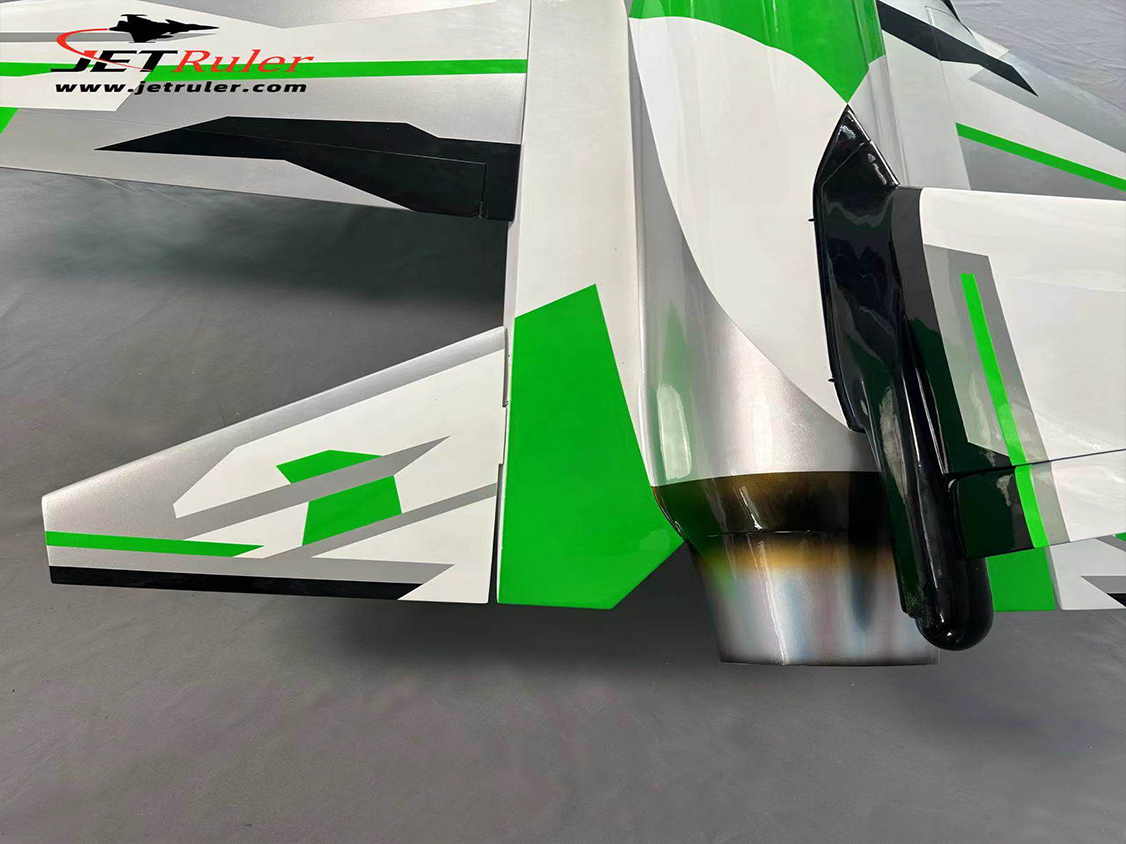

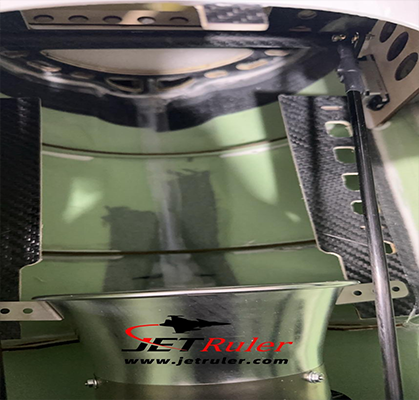

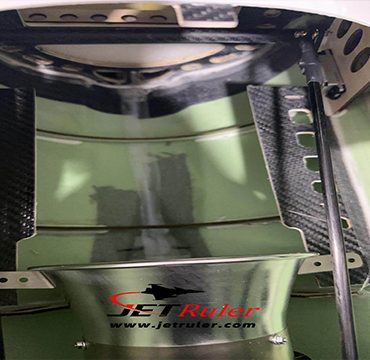

Fixed Dual wall thrust pipe (for 120-240N turbines)

Fuel tank (4200ml)

Pre-prepared pushrods with ball links

Pre-glued control horns

REQUIRED HARDWARE:

Turbine: 120-240N

Servos: x8

x1 for rudder,

x2 for elevators,  x2 for vector rudder/elevator

x2 for ailerons

x1 for steering

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

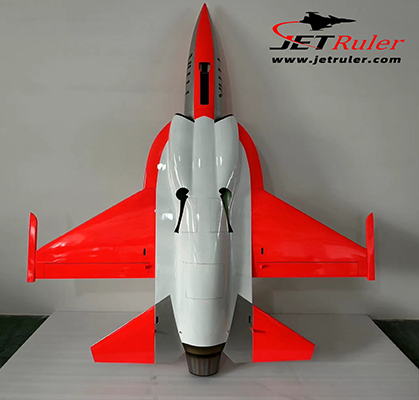

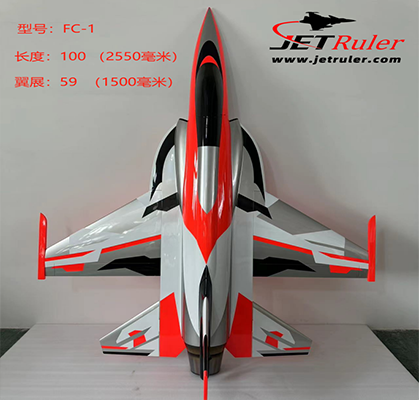

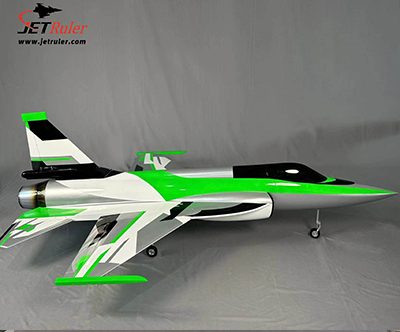

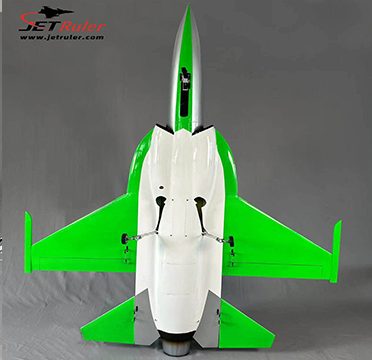

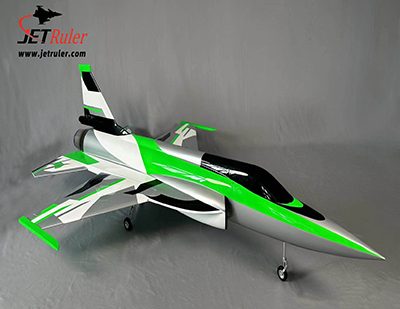

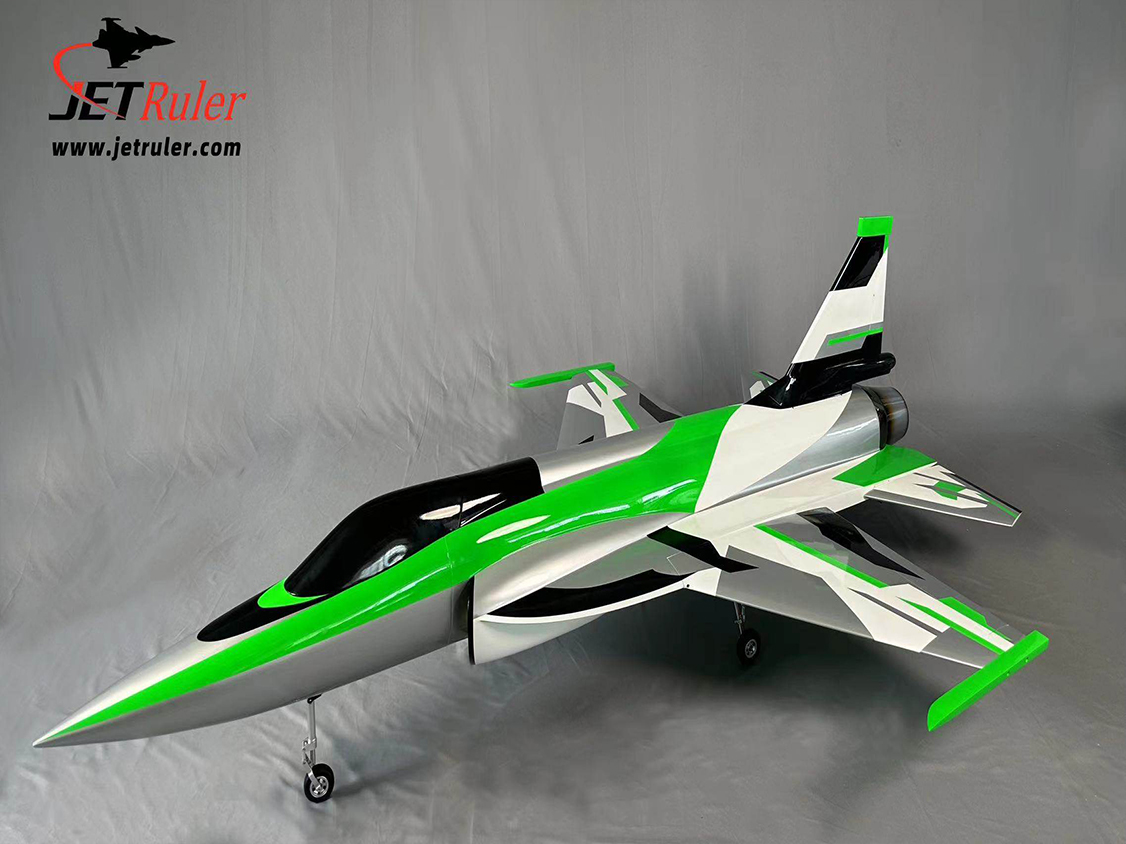

PRODUCT DISPLAY

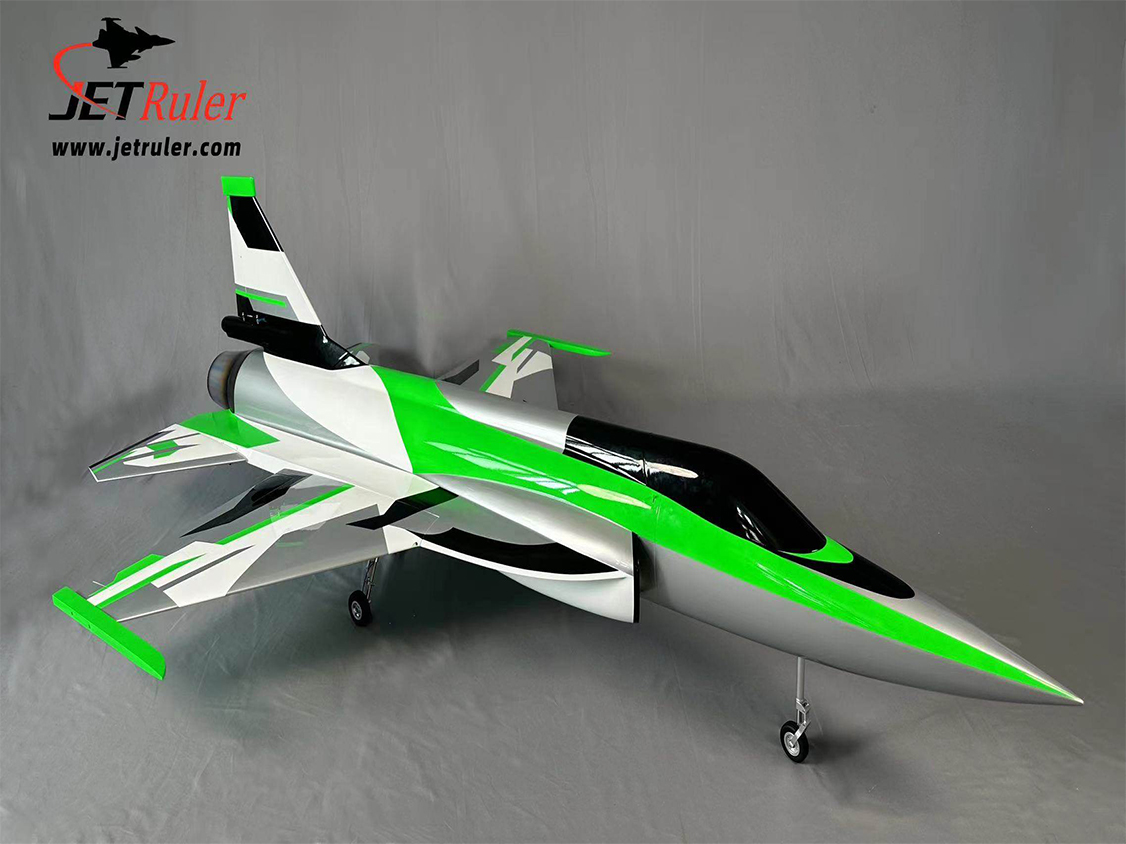

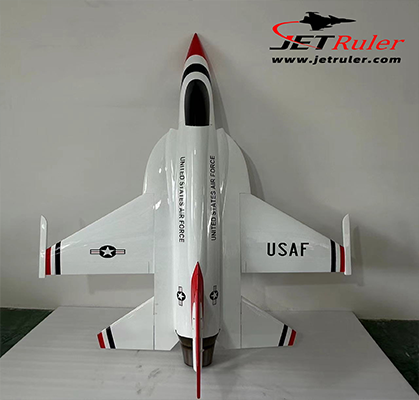

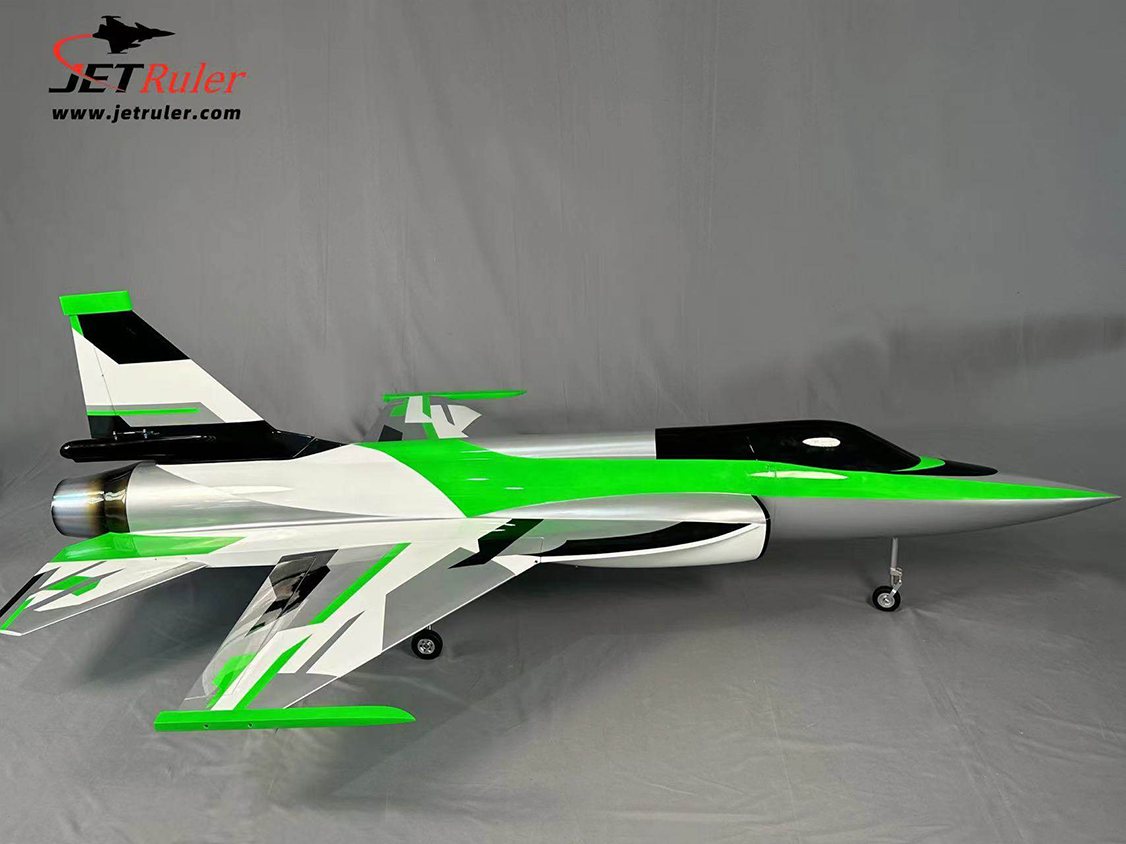

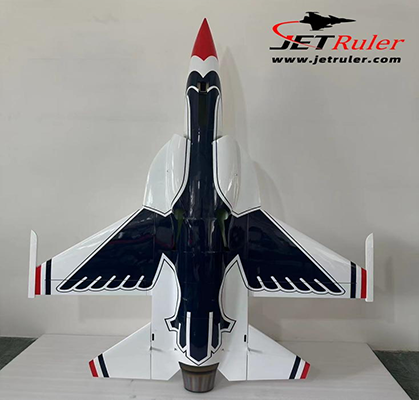

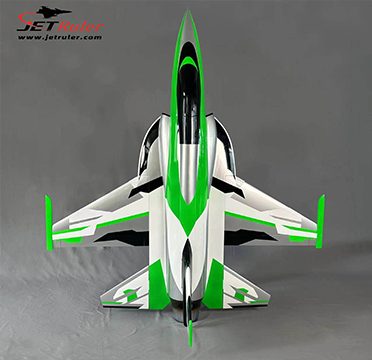

Colour scheme 01



Colour scheme 02



Colour scheme 03



Colour scheme 04
