JAS-39—3D

Description

Jet Ruler 1/6 JAS-39(3D Version)

We wanted this one to go above and beyond as a beautiful scale model. We found ways to make it reliable and tough enough to actually be flown on a regular basis, and not a problem to transport or put together, all in a package that fly’s brilliantly well.

Specification:

Model: 1/6 JAS-39（3D Version）

Wingspan:1370 mm Length:2340 mm

Weight: 10kg（without fuel）

Basic Setup:

Control Throws:

Aileron: 15 degrees up / 15 degrees down – 50% Expo

Rudder: 30 degrees left / 30 degrees right – 35% Expo

Elevator: 25 degrees / 25 degrees – 35% Expo

The CG is 19cm from the front leading edge on the root of the wing

Features:

Full composite construction, lightweight and strong,scale airbrake

Included Hardware:

Complete air frame (including fibreglass control horns)

Carbon fibre wing-tubes

Servo extension leads

Fixed Dual wall thrust pipe (for 100-190N turbines)

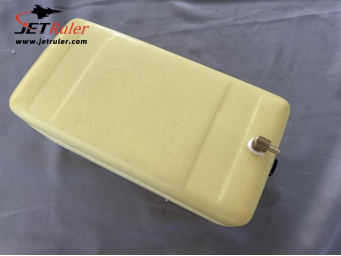

Fuel tank (3500ml)

Pre-prepared pushrods with ball links

Pre-glued control horns

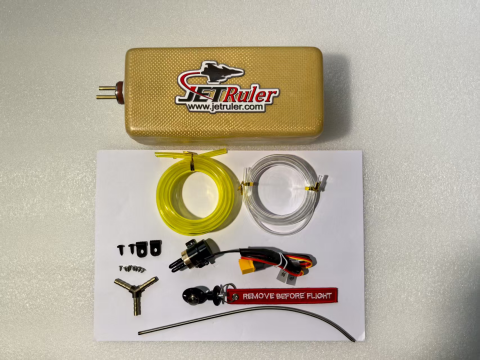

Smoke System:

(Optional configuration） The smoke system incorporates a 1-liter Kevlar fuel tank.

Required Hardware:

Turbine: 100-190N

Servos: x7

x2 middle size servo,12-20kg

x5 standard size servo, 30-40kg

Also requires all the usual accessories such as transmitter, receiver, batteries, power box and possibly other small accessories.

optional:

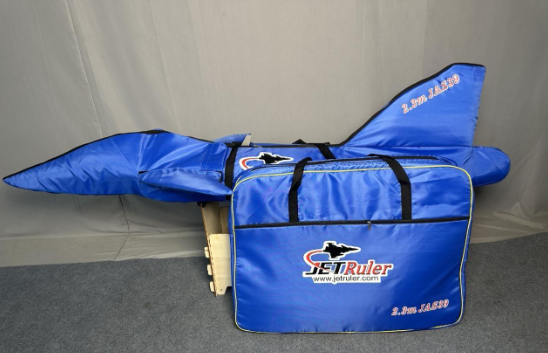

Protecting Bag

Scale Cockpit

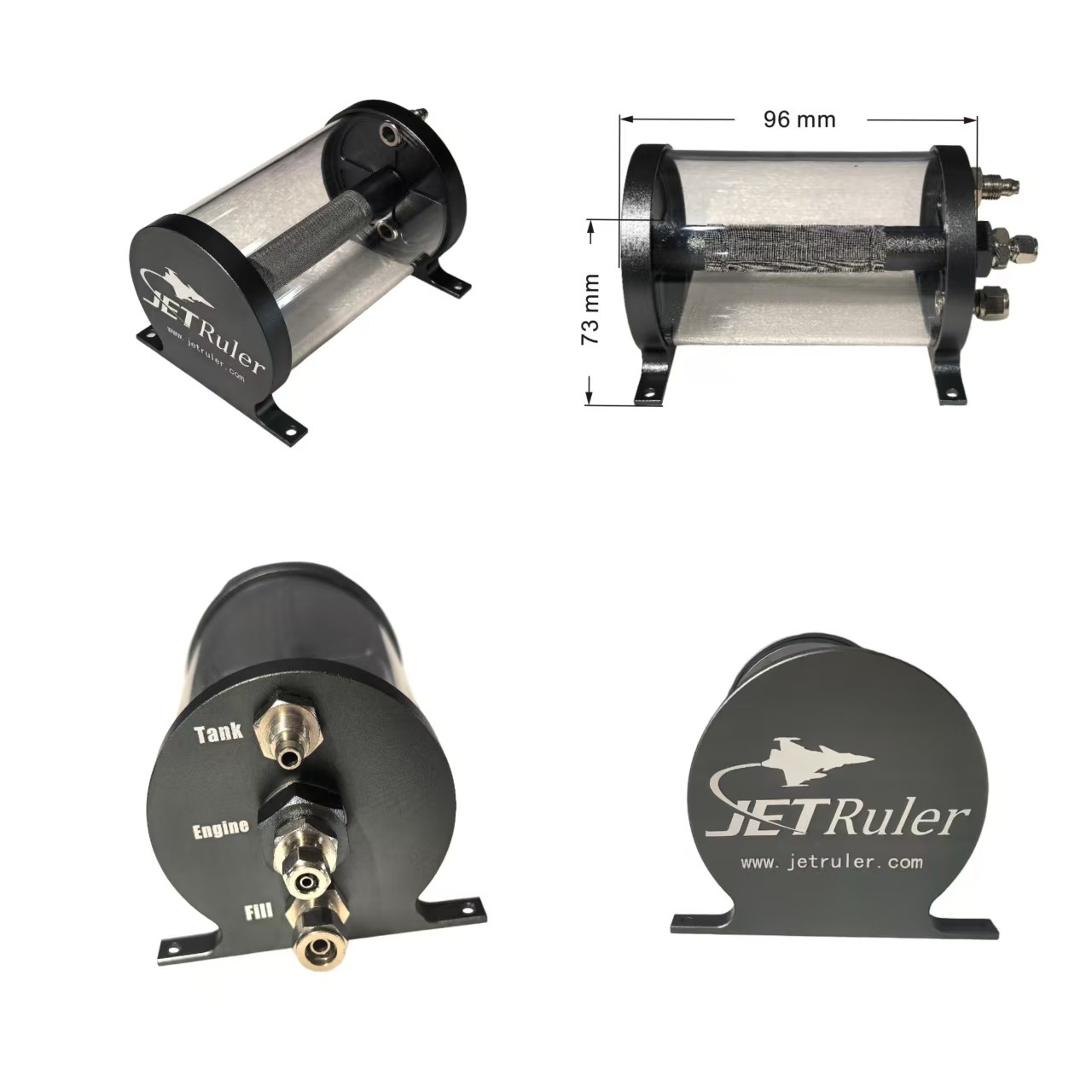

UAT:  220cc

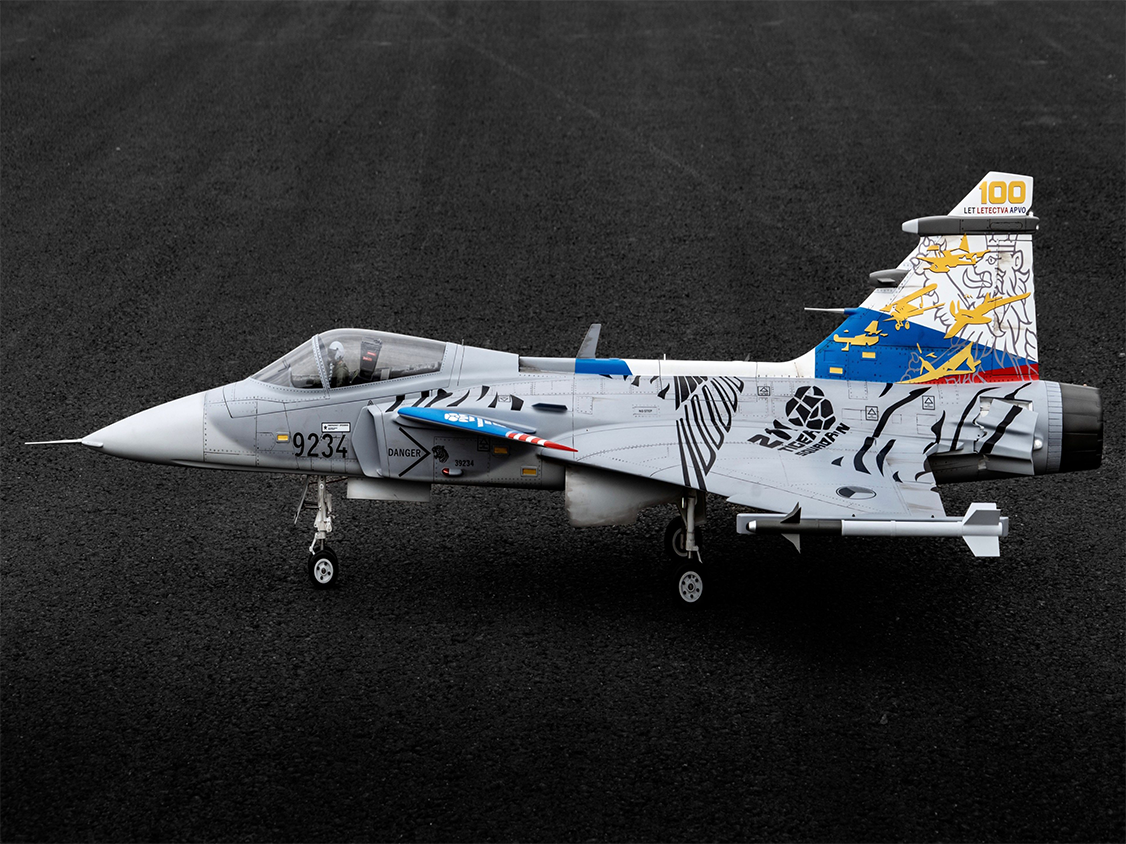

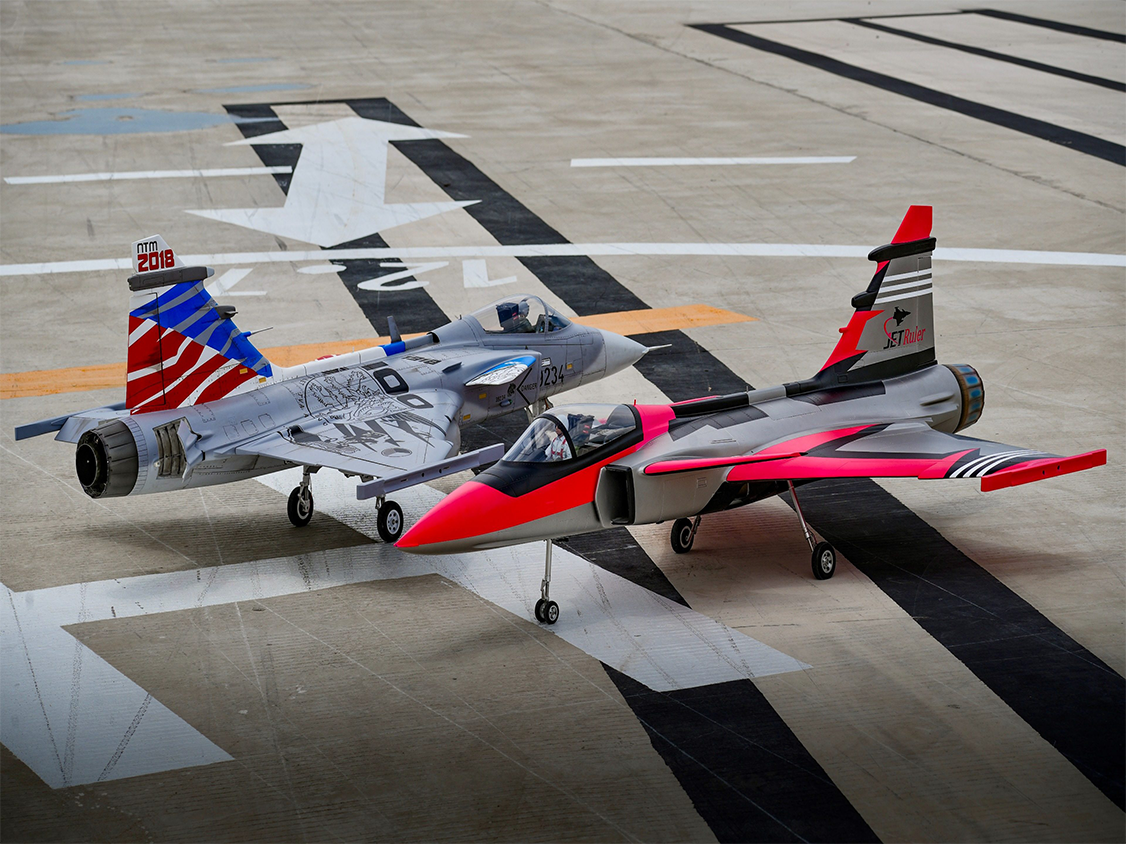

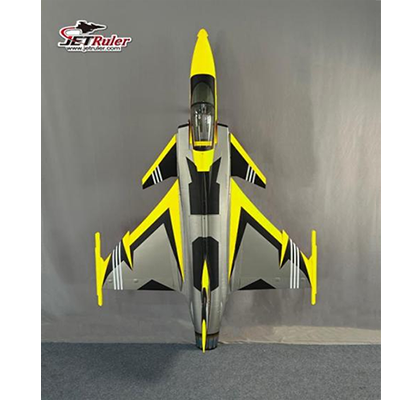

Product Display

COLOUR SCHEMES AVAILABLE:

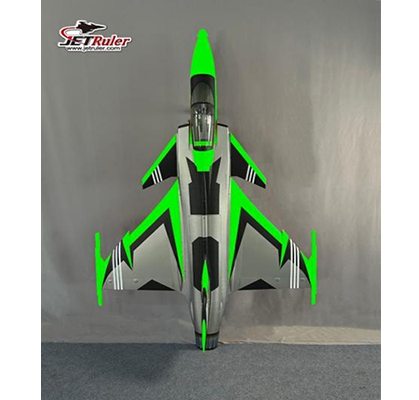

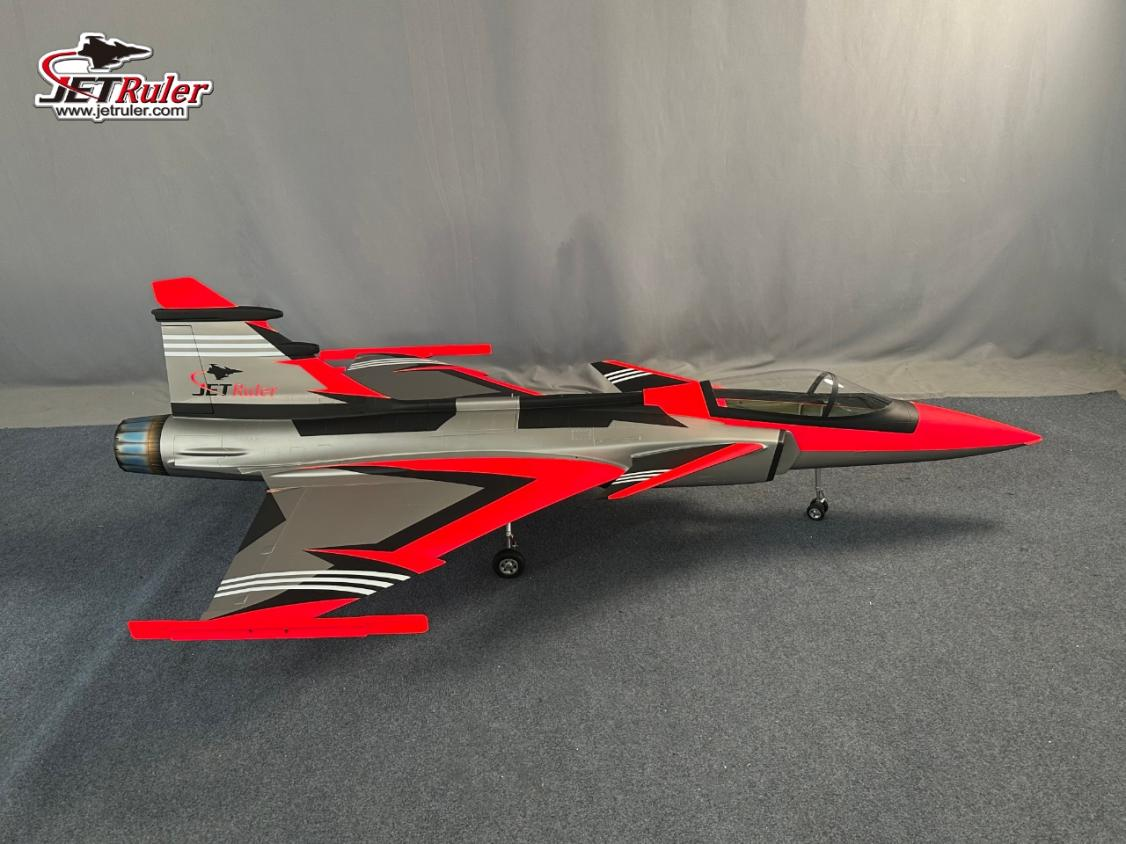

 Colour scheme1

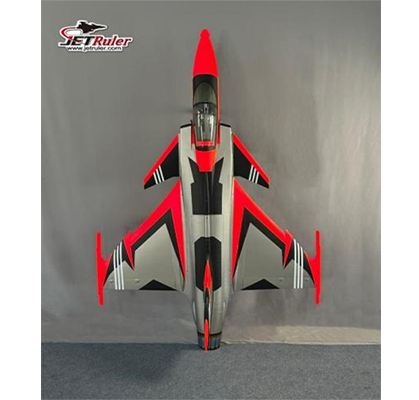

Colour scheme2

Colour scheme3

Colour Scheme: 04
